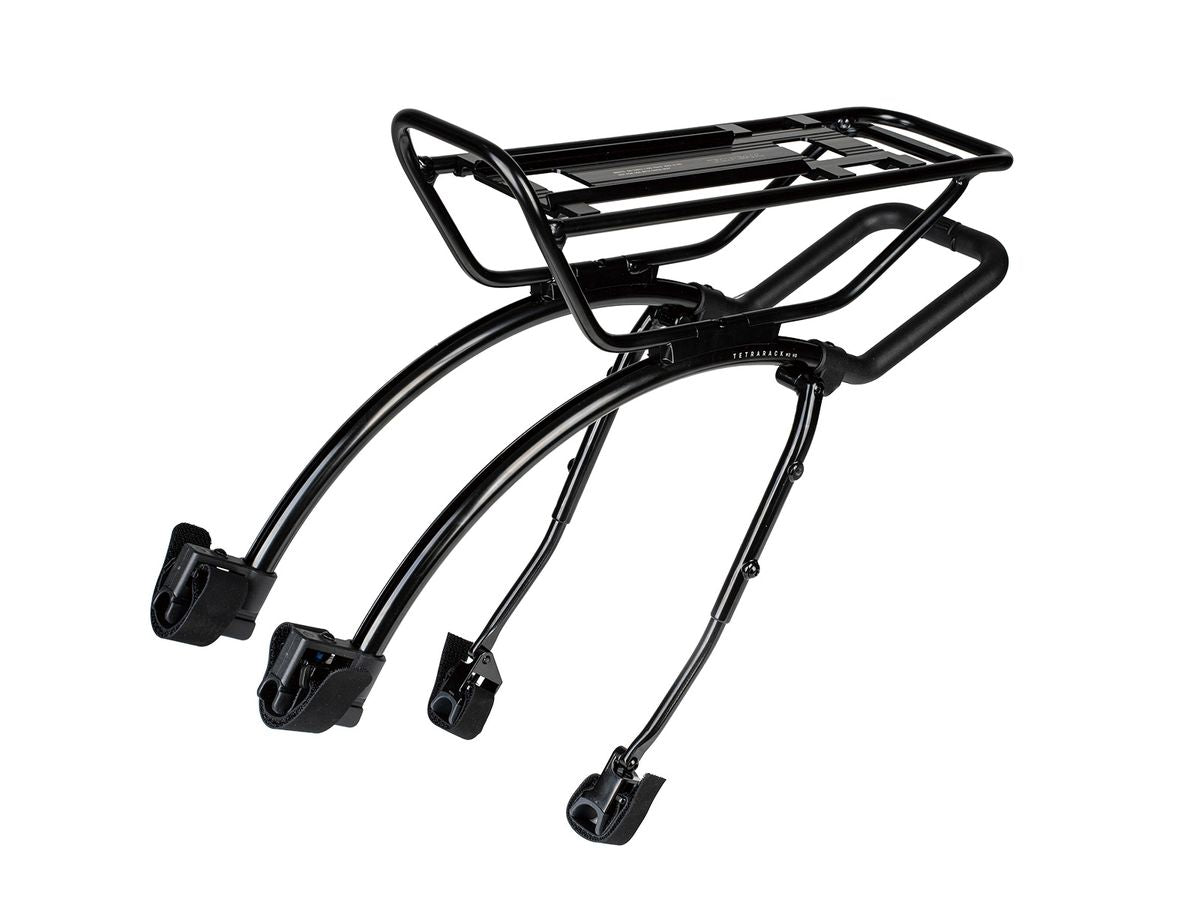

The perfect quick-mount rear rack system attaches to MTB full suspension seatstays or hardtail MTB. The next-generation rack design allows for a 66% increase in carrying capacity, with a maximum load of 22kg, to meet the needs of cyclists carrying more equipment during their travels.

NOTE :

*TetraRack is not recommended for carbon forks and seat stays
*TetraRack series racks are not compatible with front or rear mounted V-Brake type systems.

*KLICKfix. is a registered trademark of RIXEN & KAUL GmbH.
*Racktime. is a registered trademark of Tubus Carrier Systems GmbH.

ATTACHMENTS	Seatstays with hook and loop straps
MATERIAL	Aluminum / Engineering grade polymer / Nylon straps
ADJUSTMENT	Strut slots
COMPATIBILITY	Topeak MTX TrunkBags & Baskets. KLICKfix® / RackTime® Snapit 1.0 or Vario system bags TETRARACK FENDER M2 / TETRARACK SIDE FRAME
MAX LOAD	22 kg / 48.5 lb
SIZE	47.5 x 38.5 x 13.5 cm / 18.7" x 15.1" x 5.3"
WEIGHT	1.25 kg / 2.75 lb
ADDED FEATURE	Clamp for rear reflector, Tail light mount, Dropout eyelet mount

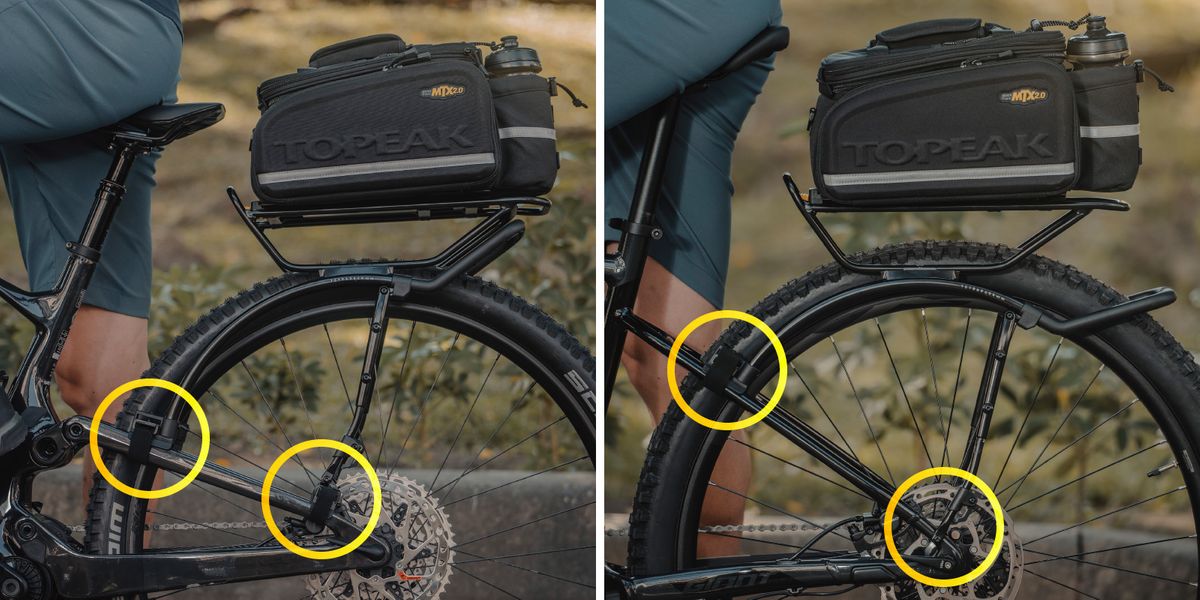

MOUNTING OPTIONS

1. Strap + Strap Mount 2. Strap + Dropout Eyelet Mount

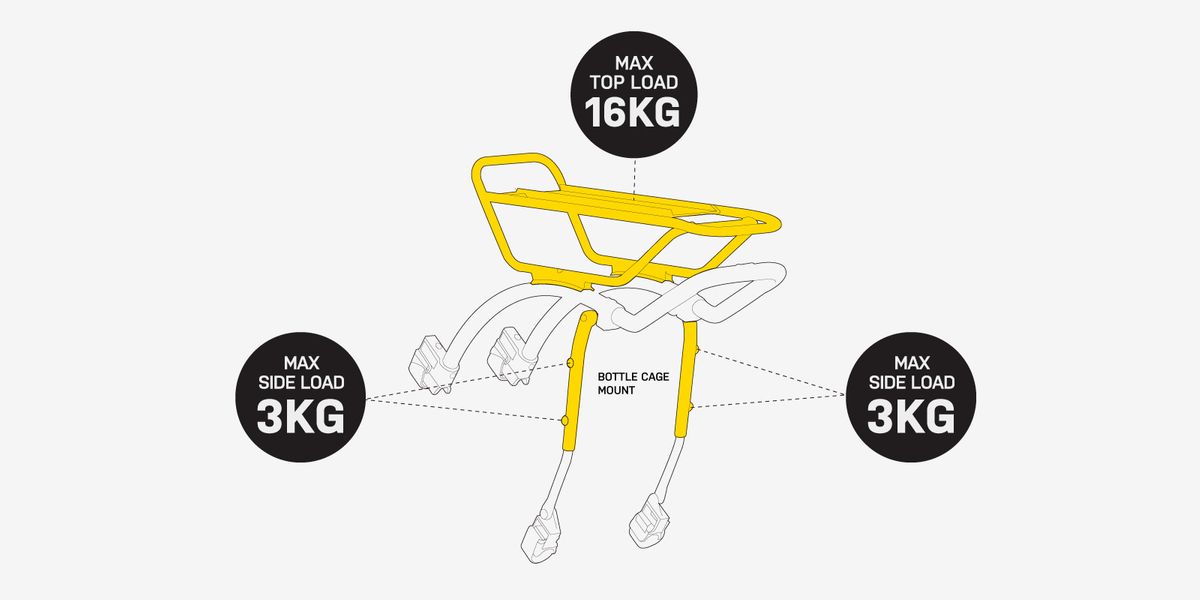

MAX LOAD IN TOTAL 22KG

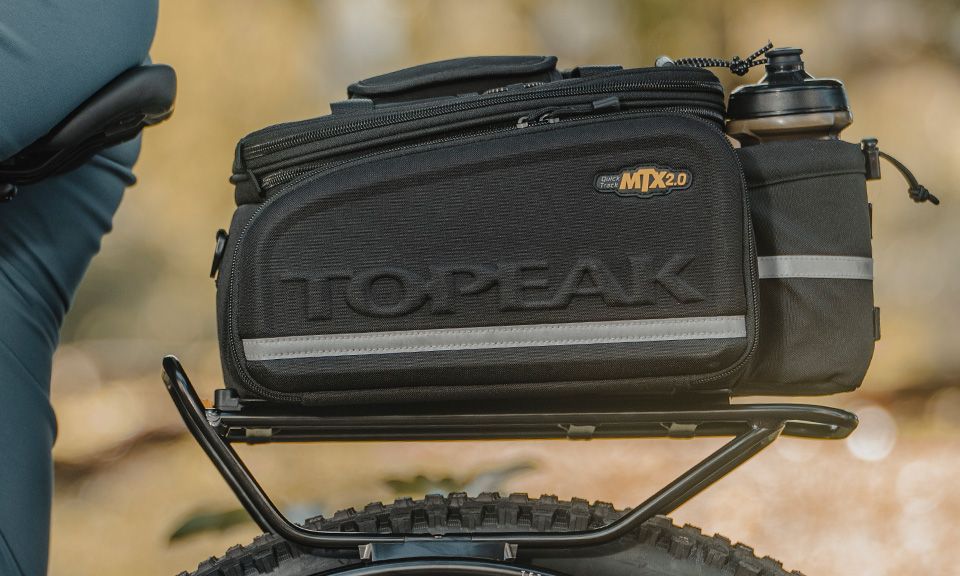

QUICKTRACK® SYSTEM

Compatible with Topeak QuickTrack® system, KLICKfix® / RackTime® Snapit or Vario system bags.

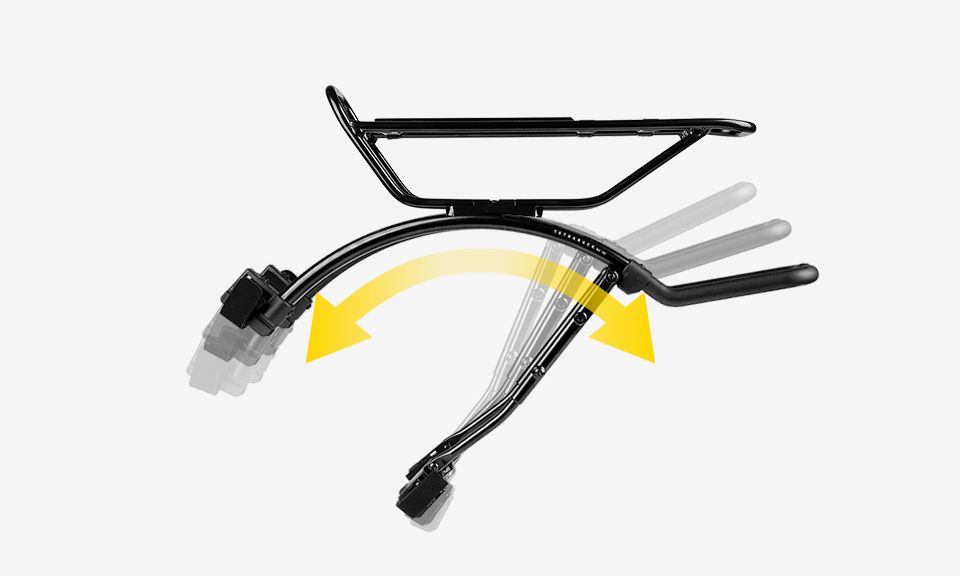

STRUT SLOT ADJUSTMENTS

Allow the rack top plate to be level independent of the seatstay angle

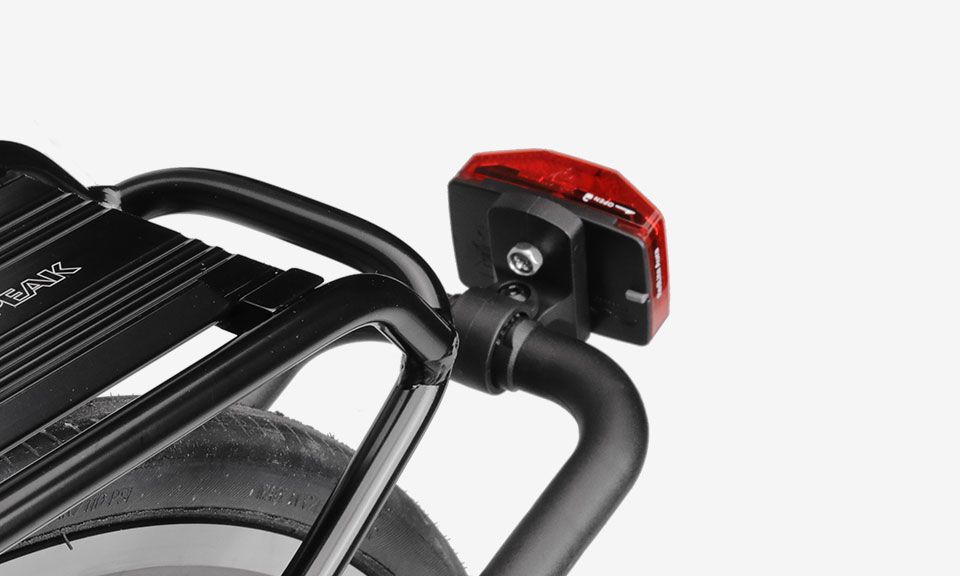

CLAMP FOR REAR REFLECTOR

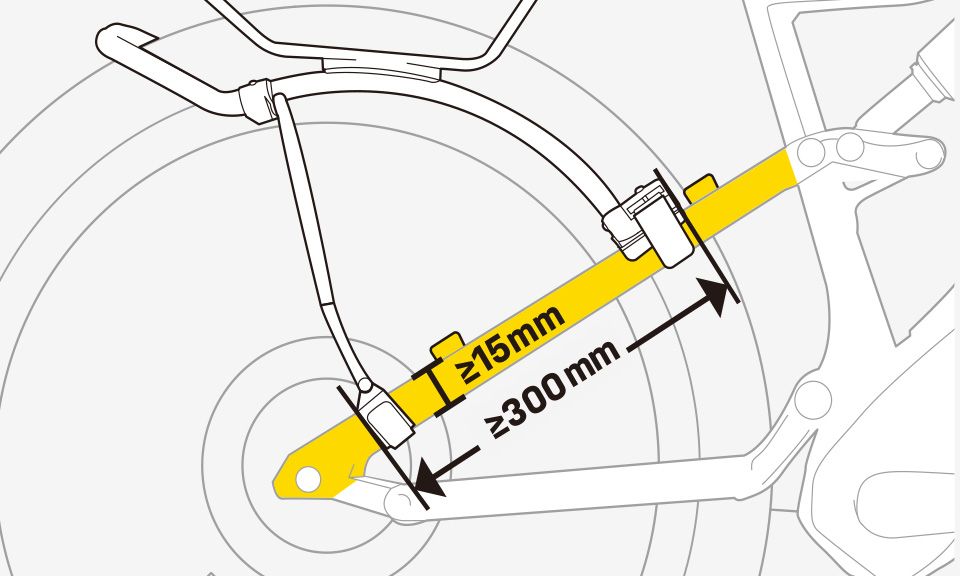

TetraRack has a mounting length of 300mm. Seatstay diameter must be larger than 15mm.

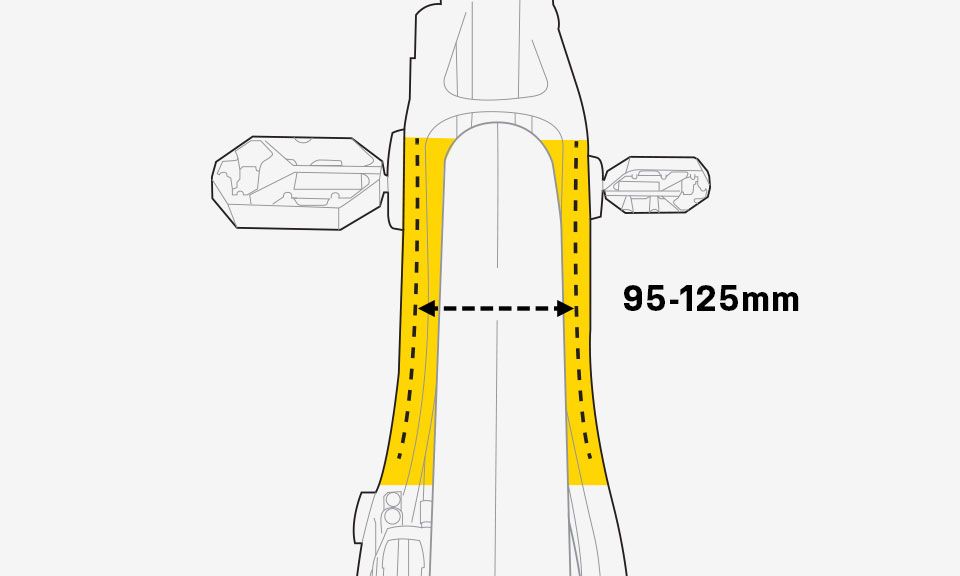

Compatible with seatstays width within 95-125mm. Ensure not to exceed max weight capacity.
The seatstay angle must be over 25 degrees for proper operation.

Topeak TetraRack M2 HD Rear

$251.91

$279.90$27.99 OFF

Tax included. Shipping calculated at checkout

SKU:
RKTP17HD
BRAND:
Topeak
BARCODE:
FUTURE SHIPMENTS:

Select variant

Product variants

Please note that some dropdown options are parts only. Please choose carefully.
