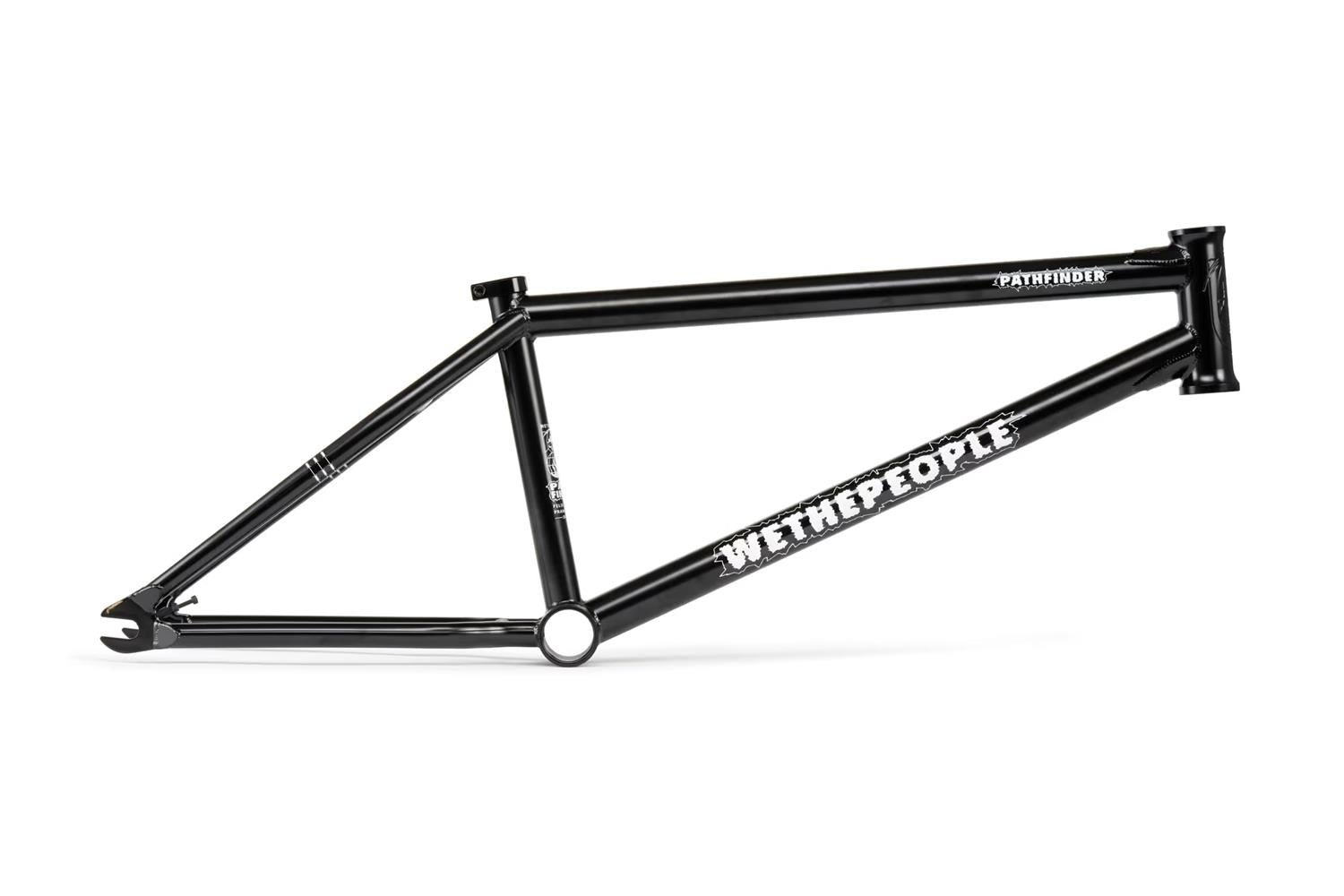

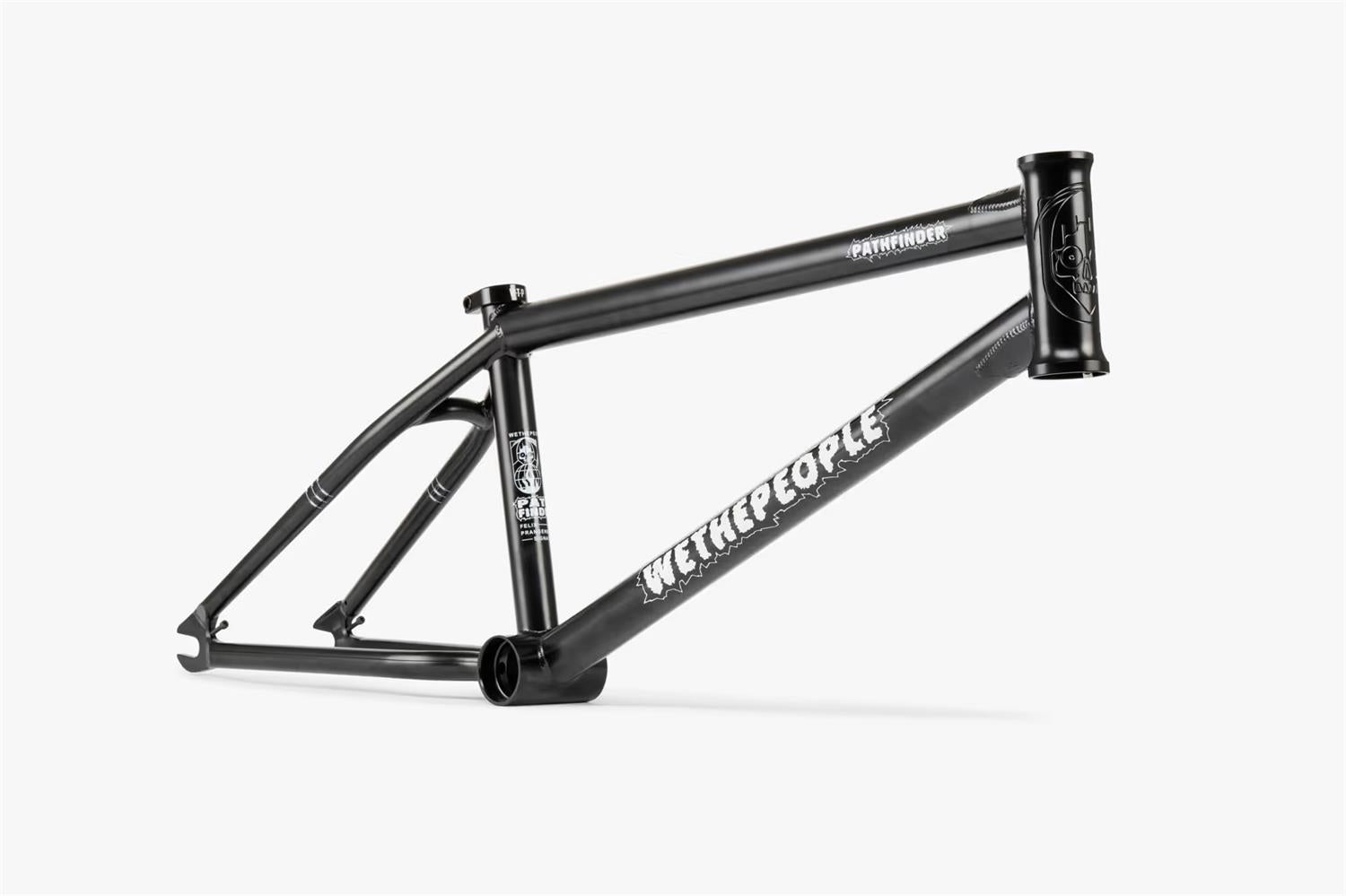

Felix Prangenberg’s signature Pathfinder Frame is a product that reflects the originality, progression and power of Felix's riding. Boasting a short 13” chainstay and a taller 9.666” standover height, the Pathfinder Frame utilizes ground-breaking offset thickness chainstay and bottom bracket shell, to strengthen the frame in areas susceptible to grind damage.
Now with updated graphics, CNC detailing on the head tube and bottom bracket shell, the Pathfinder also now comes in a scaled down 20.5" option for the rider wanting a more compact frame. Includes Lifetime Guarantee.
- TUBING: butted, Japanese seamless 4130 crmo tubing
- BOTTOM BRACKET: 74mm mid size, offset cnc machined and heat-treated

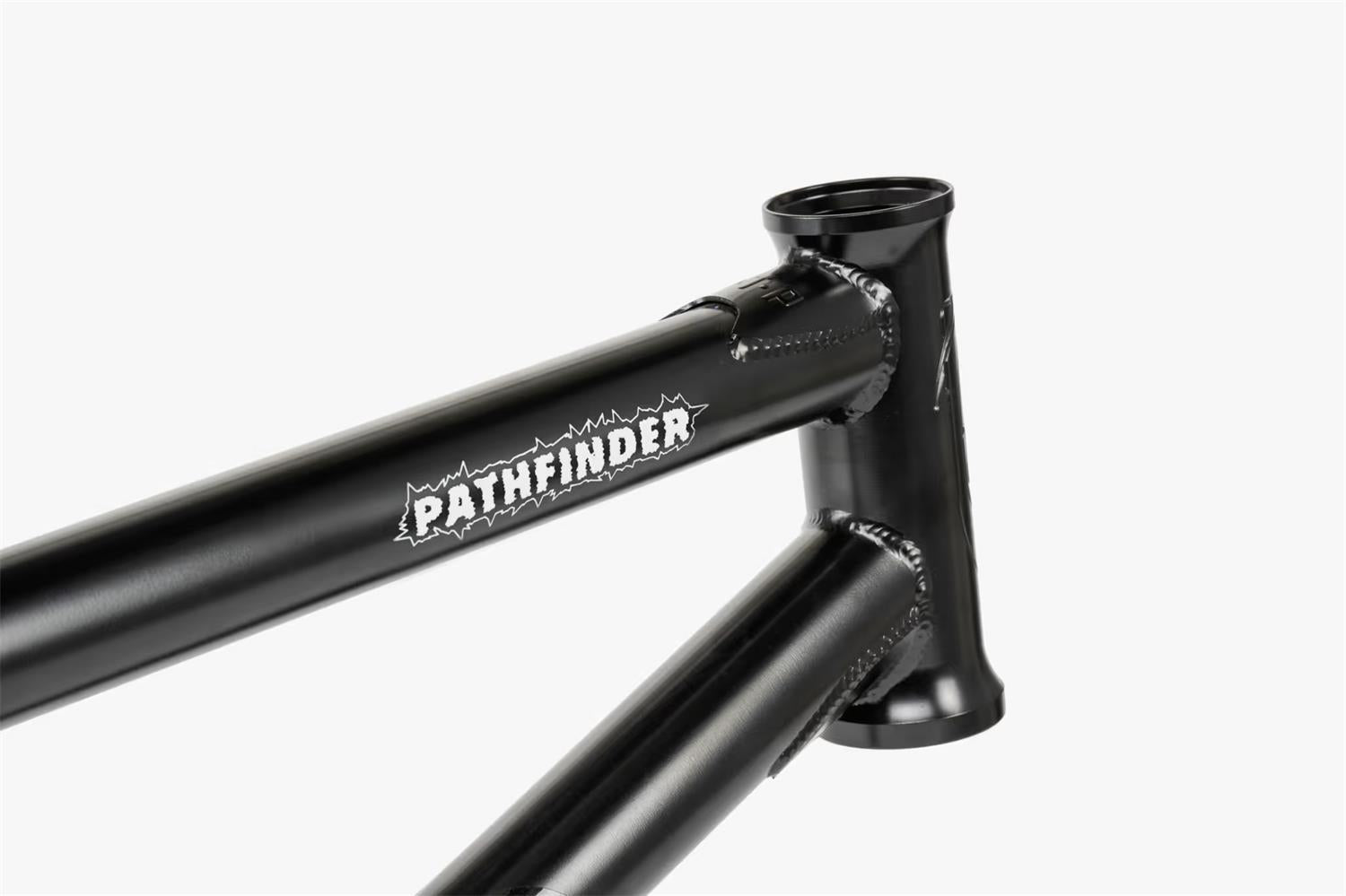

- HEAD TUBE: 127mm cnc machined and heat-treated, integ. h/set

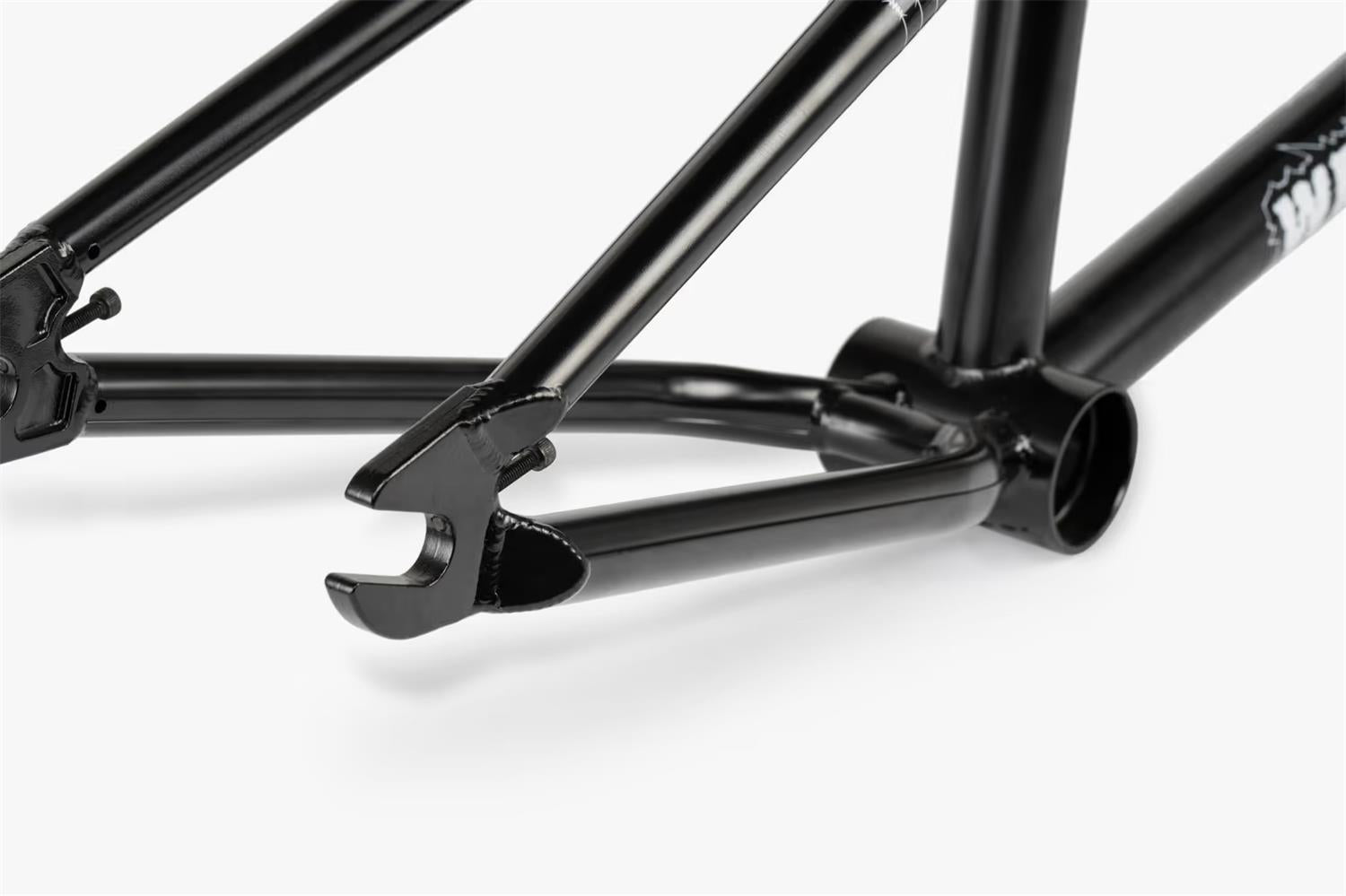

- DROPOUTS: Invest casted 7.5mm thick, integrated chain tensioners, heat-treated 4130 crmo, perfect shape for pegs and hub guards
- BRAKES: brakeless frame
- SPECIAL FEATURES: • NEW Shorter 20.5" option with proportional geometry • 127mm tall head tube for less spacers with an uncut fork • extruded offset thickness dent resistant chain stays and bottom bracket shell • steeper 76° head tube and taller 9.666" stand over • extra thick double butted top tube • larger 1.8mm welding at head tube • wider rear triangle allows clearance for a 2.4" tire • WTP top tube and down tube gusset • WTP Supreme Seat Clamp • CNC detailing on heat tube and bottom bracket • includes LIFETIME GUARANTEE
- COLORS: Black
- WEIGHT: 2.36kg (5.20lbs) - 21" tt
Geometry
- A - TOP TUBE LENGTH: 20.5", 20.75", 21" or 21.25"
- B - CHAIN STAY LENGTH: 12.9" - 13.5" - optimized for 13"/13.25" || (20.5") - 12.7"-13.25" - optimized for 12.75/13"
- C - HEAD TUBE ANGLE: 76°
- D - SEAT TUBE ANGLE: 71°
- E - BB HEIGHT: 11.7"
- F - STANDOVER HEIGHT: 9.666" / 9.35" (20.5")
