Description

  • Wide Compatibility – Supports 3–14-speed drivetrains on most road bikes.
  • Wireless Shifting – Faster, simpler gear changes with a cleaner setup.
  • Long-Lasting Battery – Delivers up to 20,000 shifts per charge and withstands up to 800 recharge cycles.
  • Lightweight Carbon Fiber – Lighter and Stronger for Peak Performance.
  • Upgraded Oversize Pulley Wheel Carbon derailleur cage - With Ceramic Stainless Steel bearings for increased efficiency
  • IP67 Waterproof – Reliable Performance in Rain, Mud, or During Cleaning.

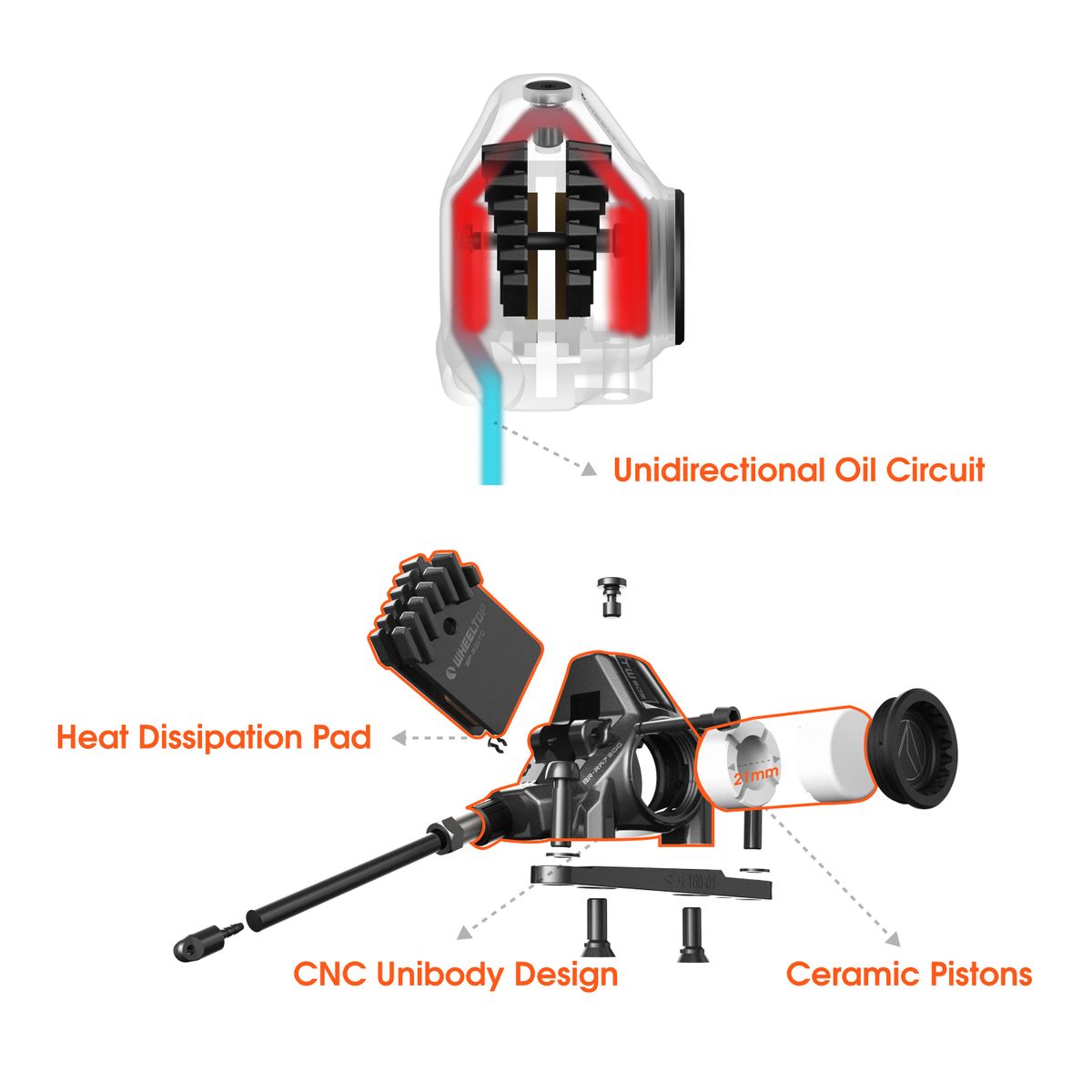

  • RA7800 Brake Callipers - CNC unibody design, 21mm dual ceramic pistons, and a unidirectional oil circuit.




Specifications:

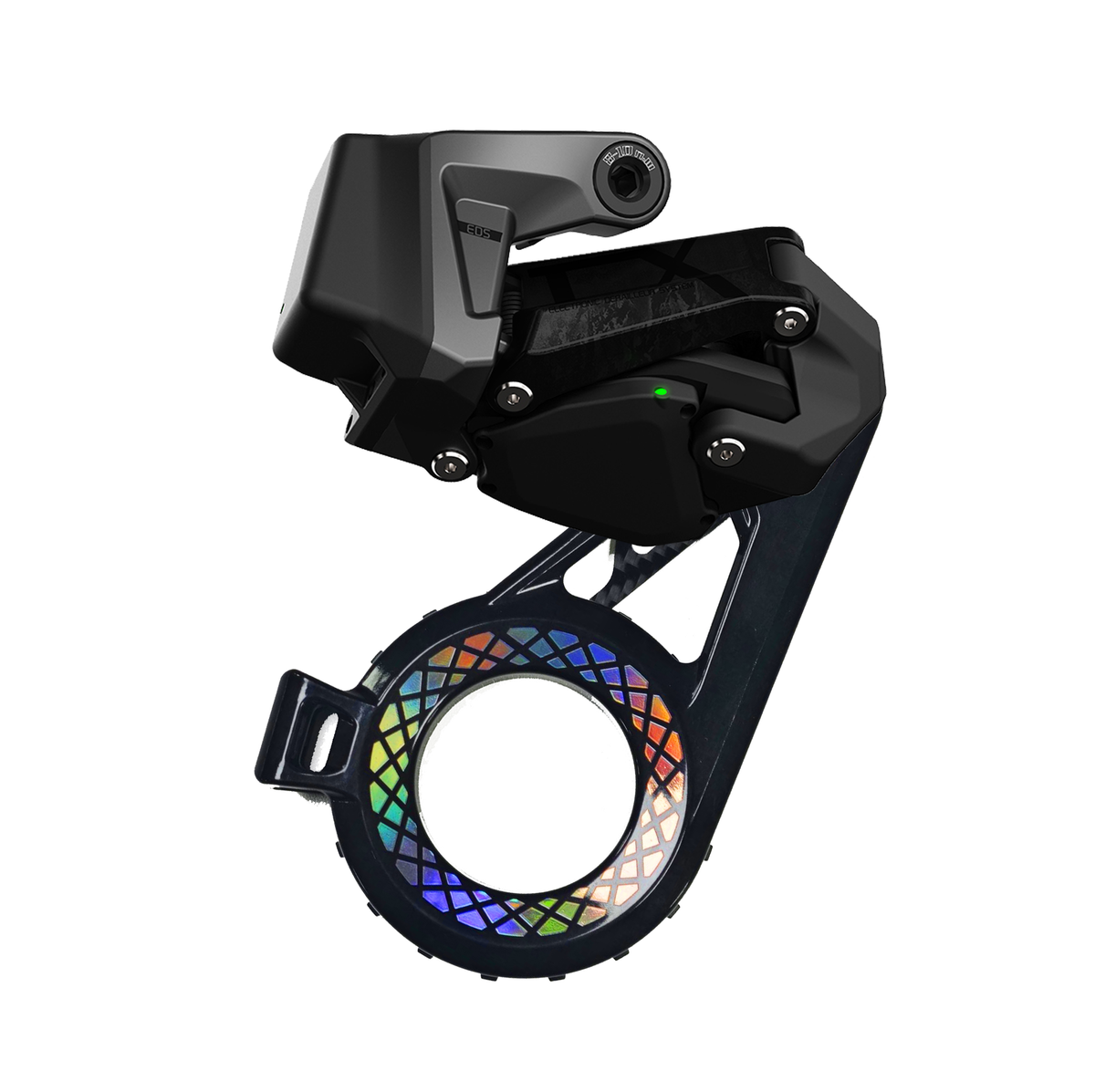

Rear Derailleur

Speed Compatibility 3-14s
Minimum Sprocket 10 - 11T
Maximum Sprocket 30 - 36T
Total Range of Gear Change 36T
Weight TBC
Battery Capacity

800mAh

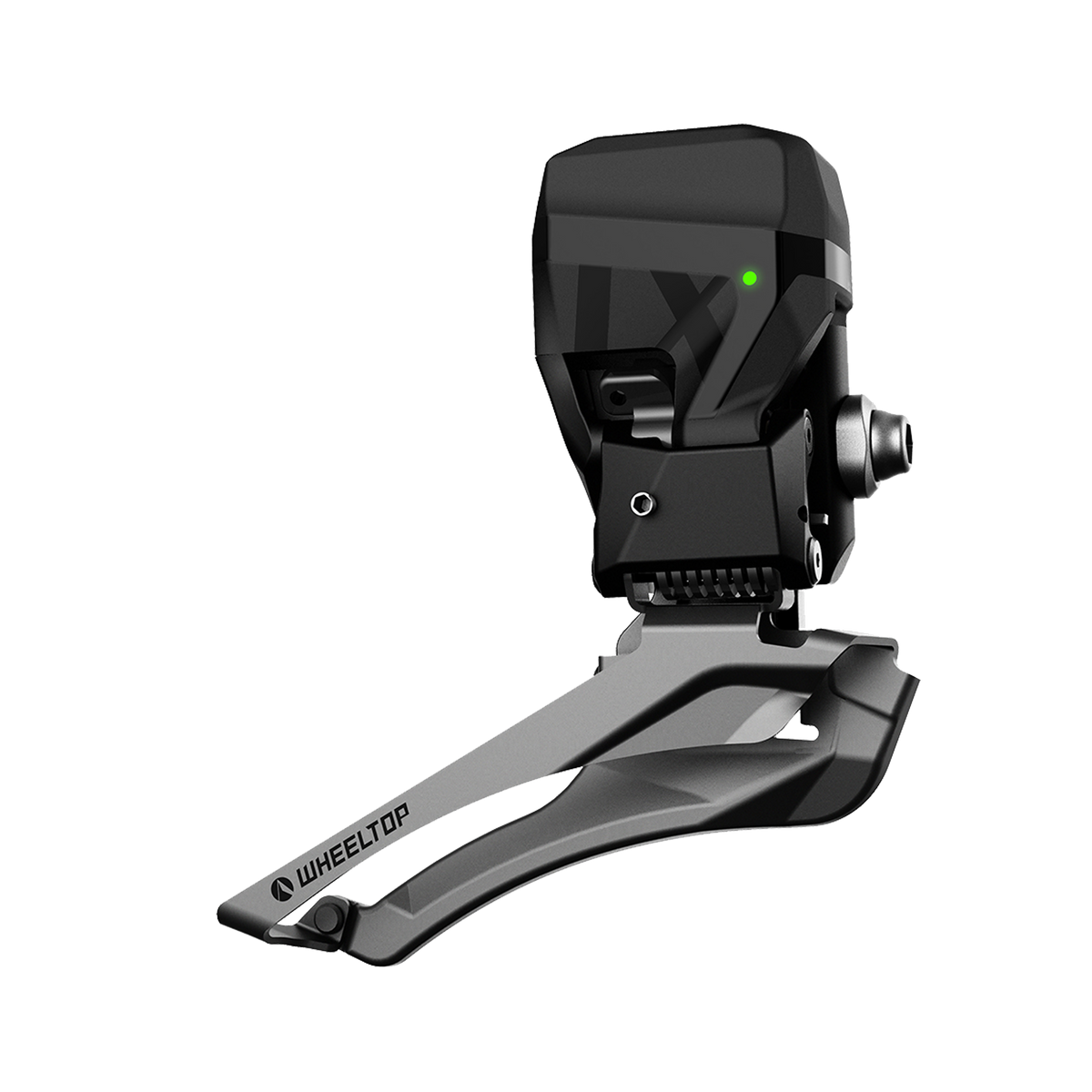

Front Derailleur

Speed Compatibility 1/2s
Chainring Compatibility 53T
Total Range of Gear Change 16T
Weight 191±5g
Angle of Chain 61°–66°
Installation Type Braze-On
Battery Capacity 500mAh

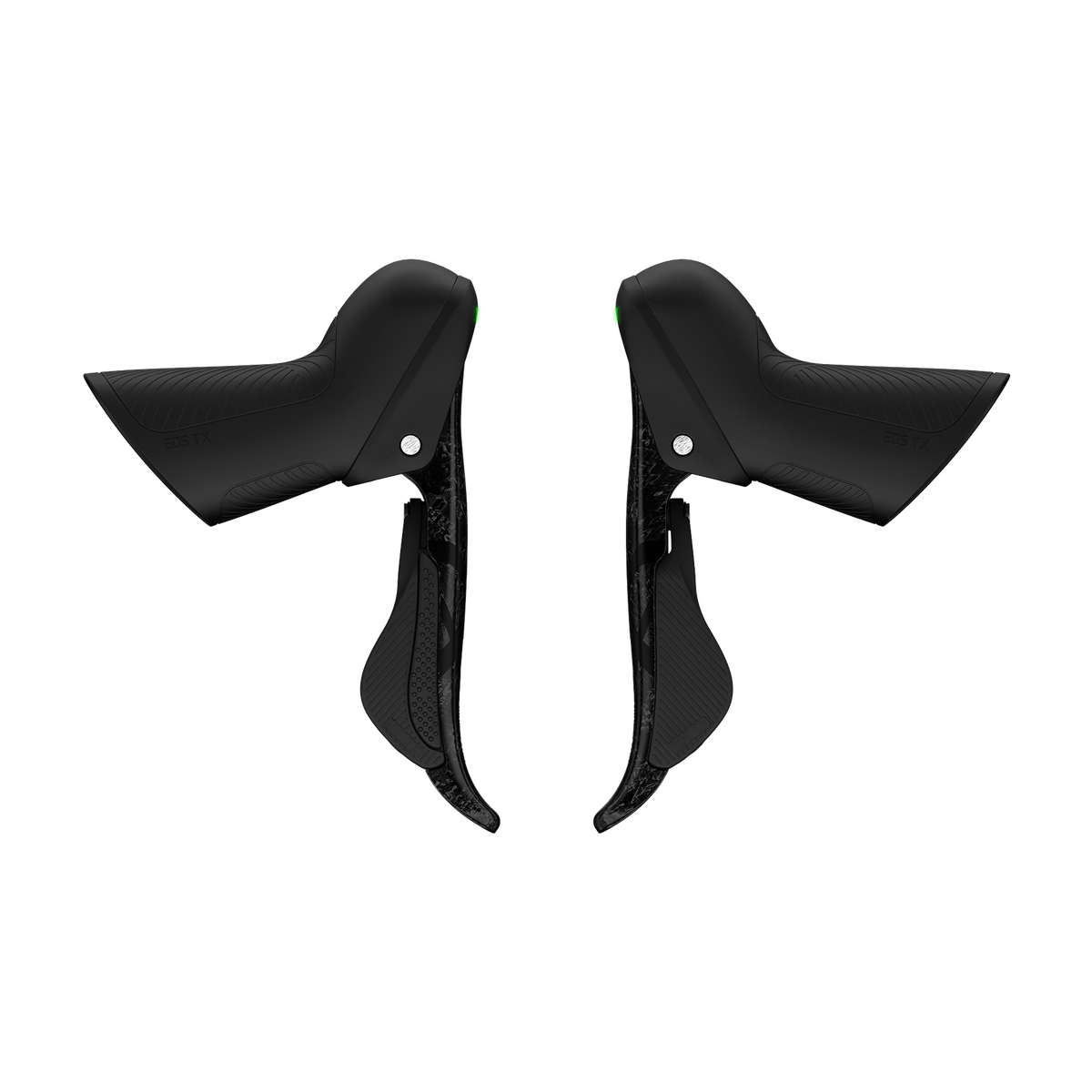

Shifters

Brake Lever Length 140mm
Adjustable Range Up To 8mm
Battery Type CR2032
Speed Compatibility L 1/2s   R 3-14s
Weight L 223±5g   R 223±5g

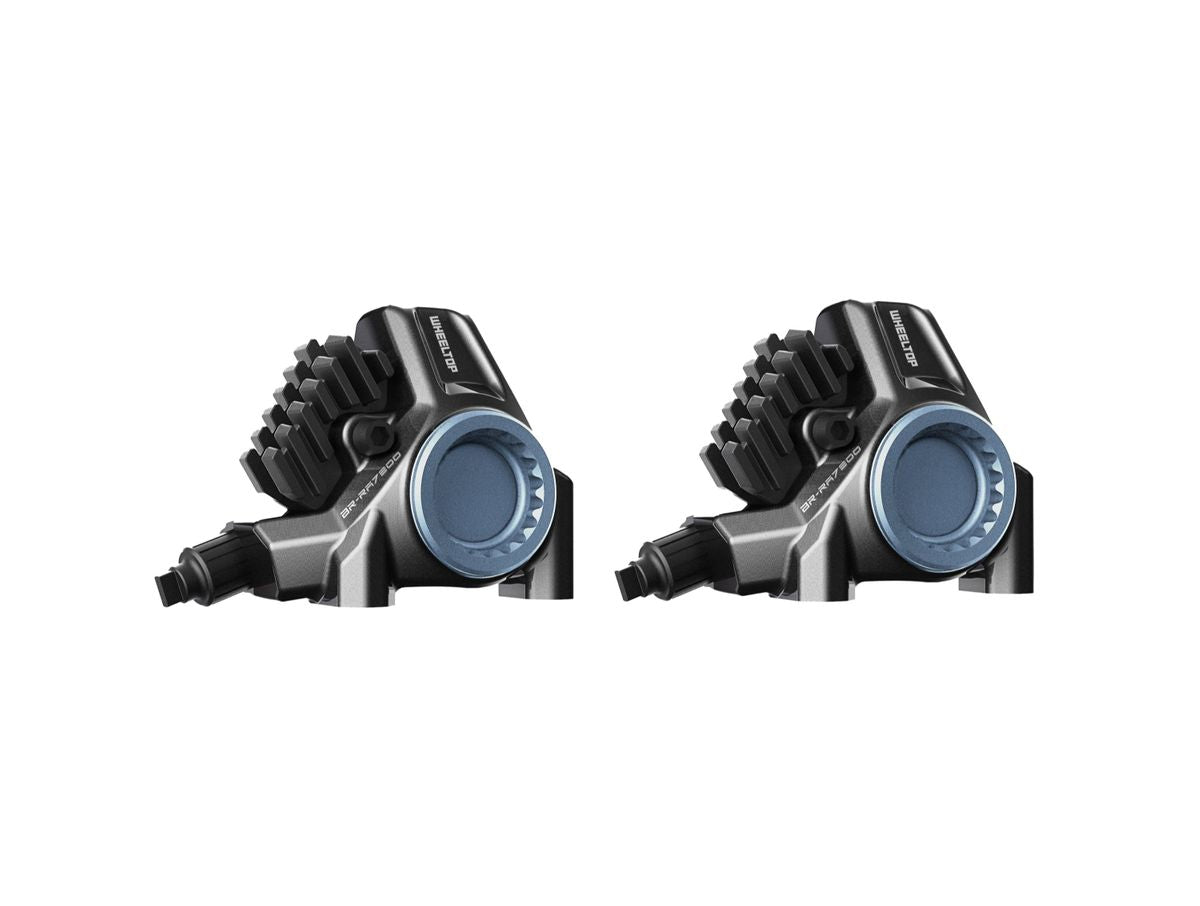

Brakes

Brake Fluid Mineral Oil
Caliper Mounting For Flat-Mount, Not Compatible with Post-Mount
Compatibility 140mm/160mm
Weight F: 135 ± 10g  R: 170 ± 10g
Brake Pads Type Compatible with Shimano L04C, L05A, L04A, BR-RX810, IIPRO-GLYS
Oil Hoses Length F: 900mm  R: 1550mm
Oil Hoses Type Available with Shimano BH-90





Wheeltop EDS Road TX Carbon + Ceramic Oversize Pulley Set

Regular price $1,644.90

Tax included. Shipping calculated at checkout

  • SKU:
    GSWT6400
  • BRAND:
  • BARCODE:
    TX-RA7800

Some dropdown options are for individual parts or specific sizes. Please select carefully.
