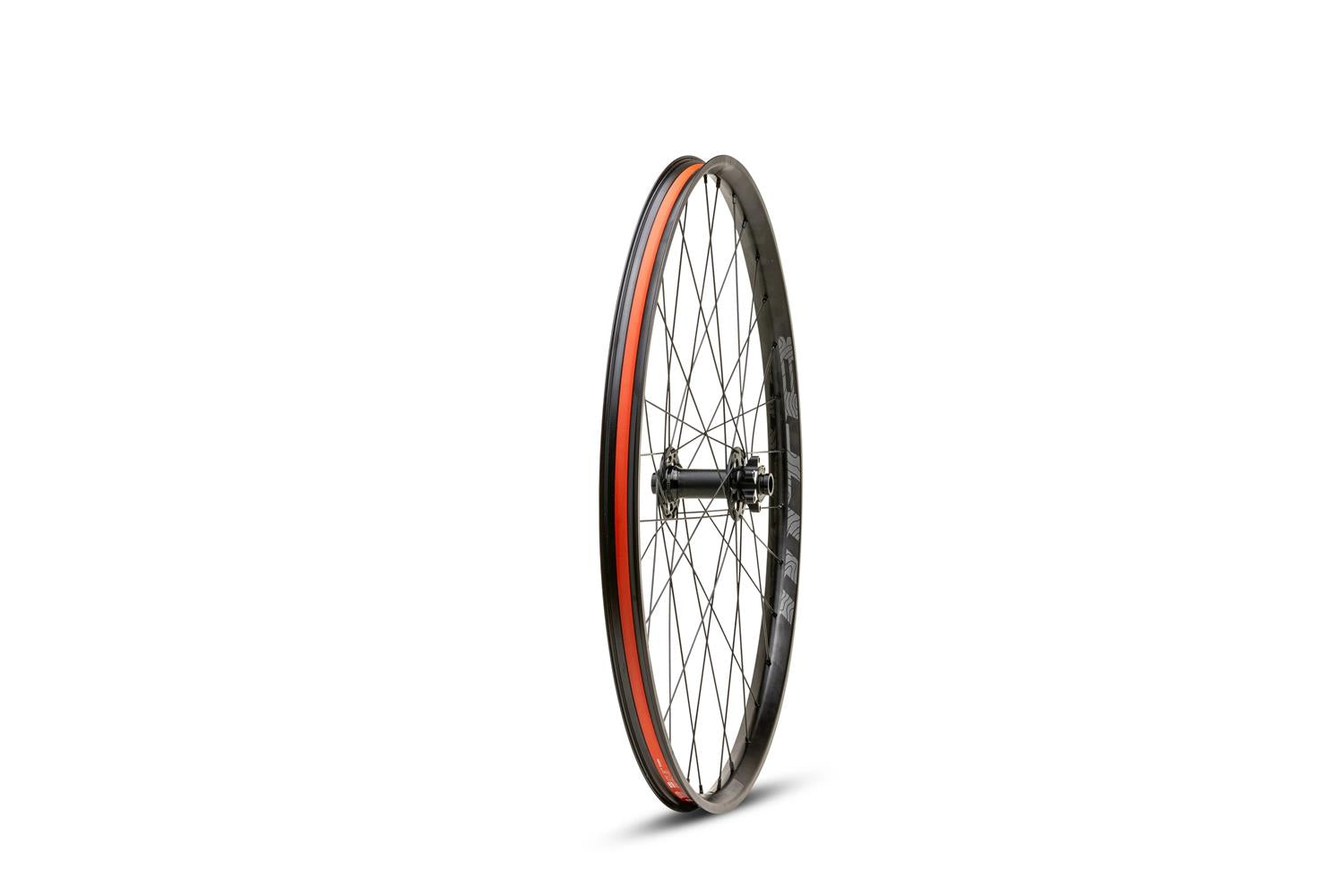

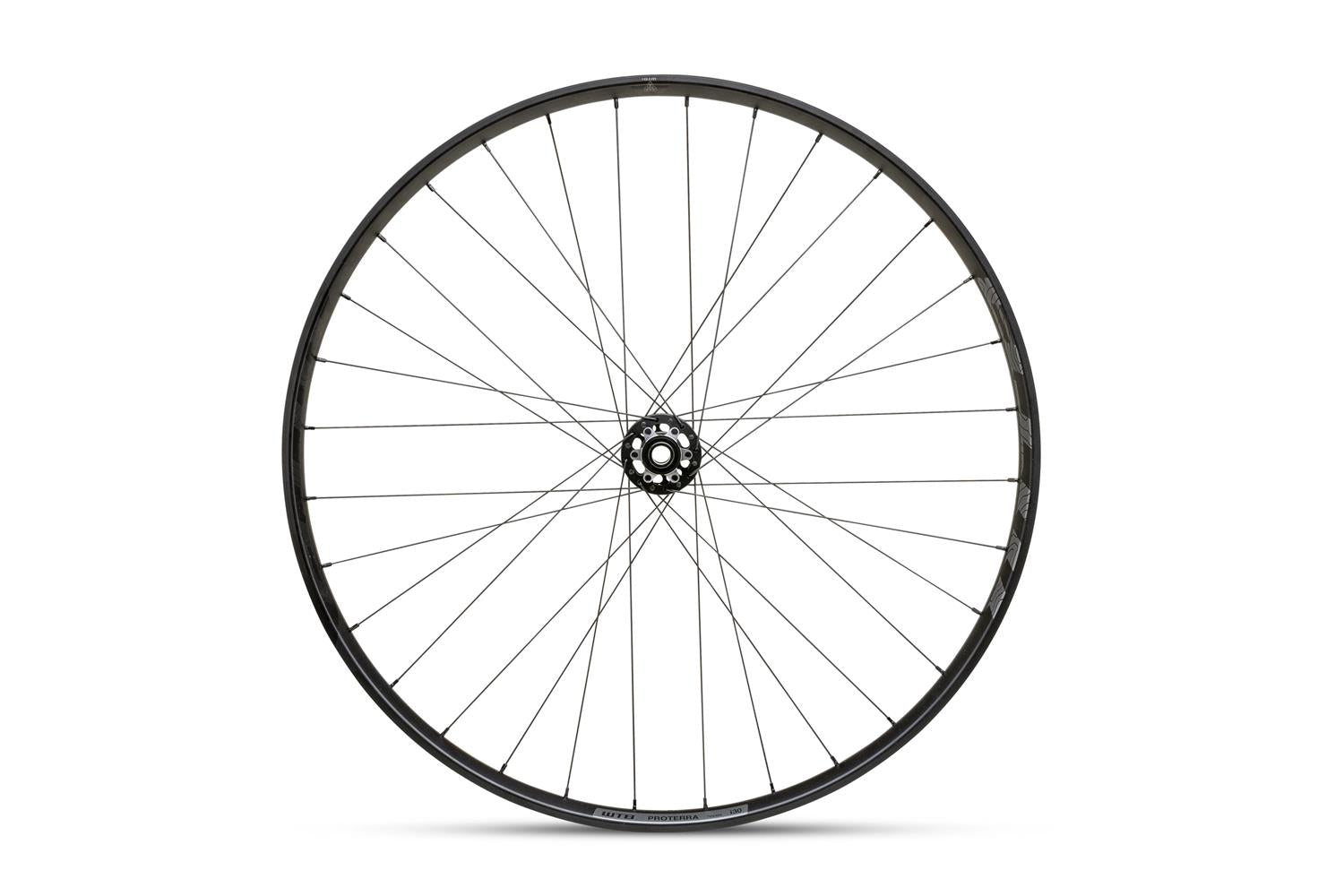

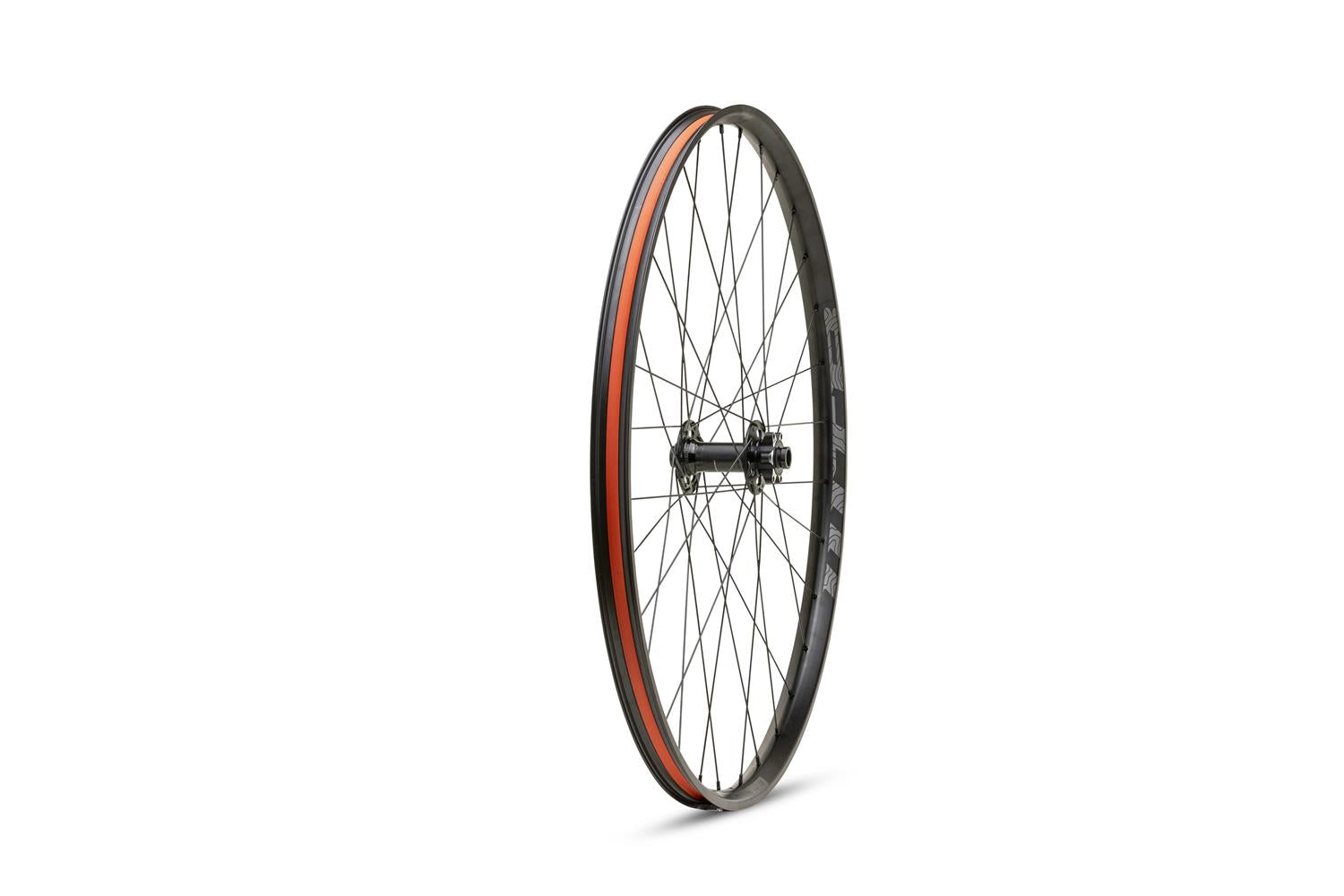

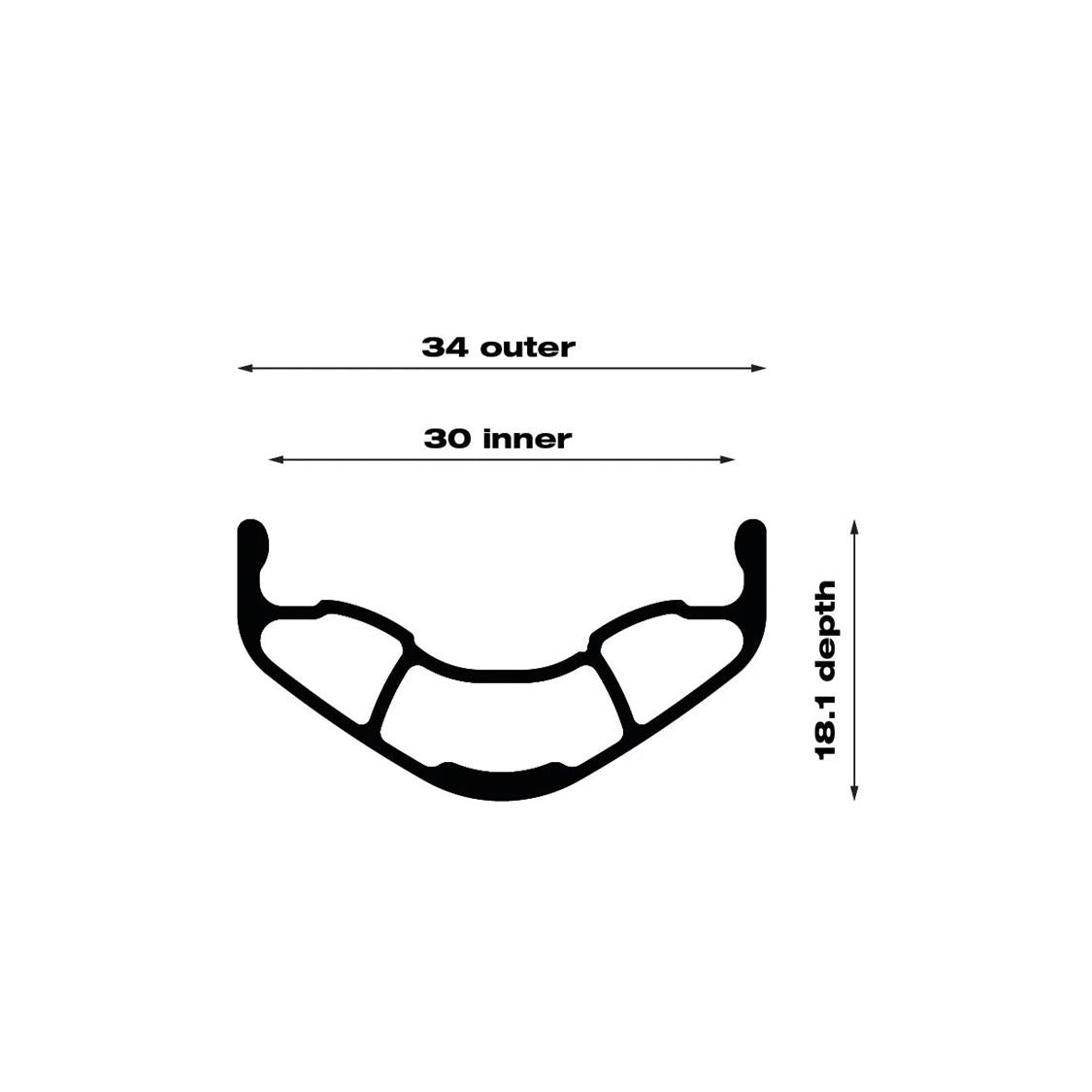

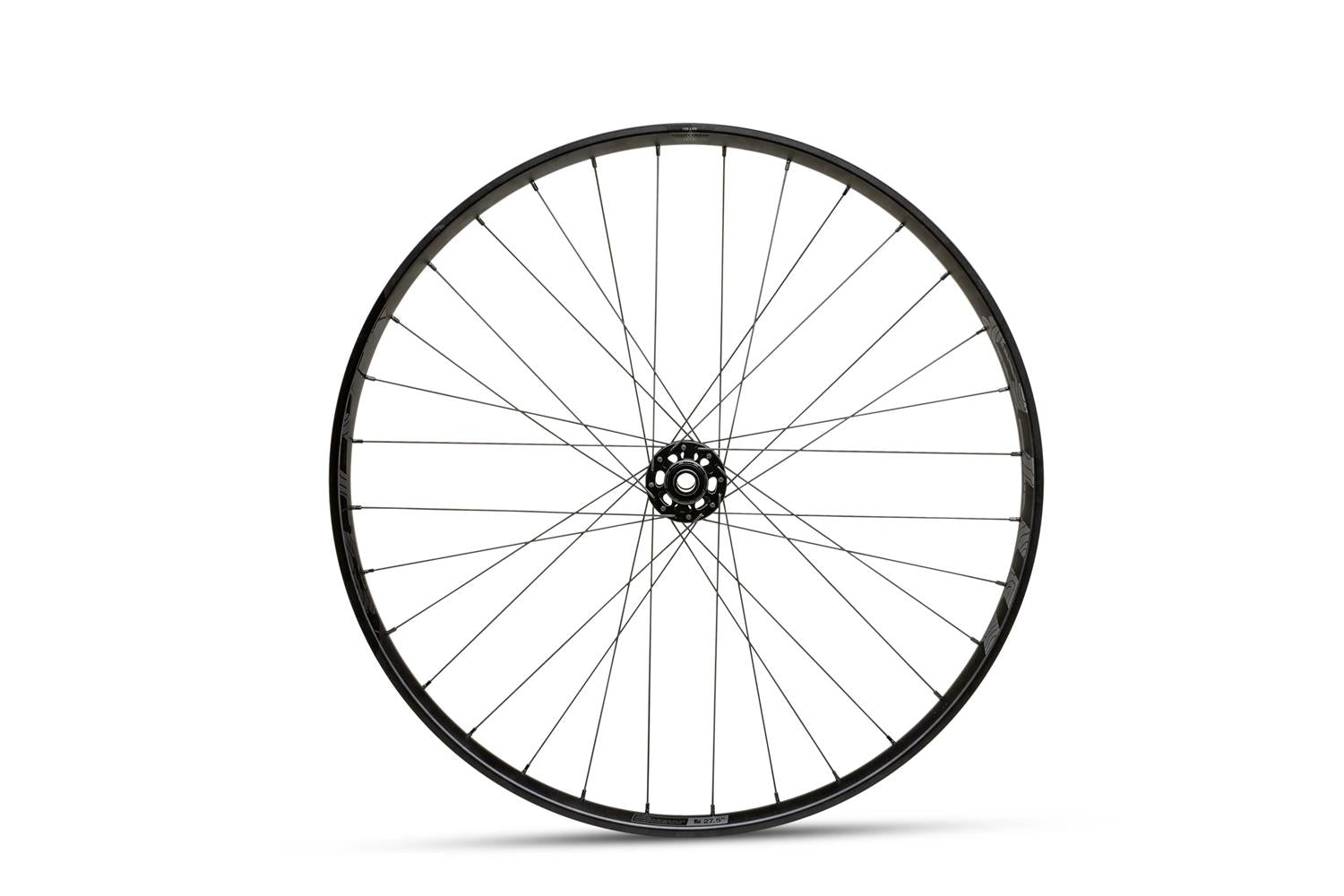

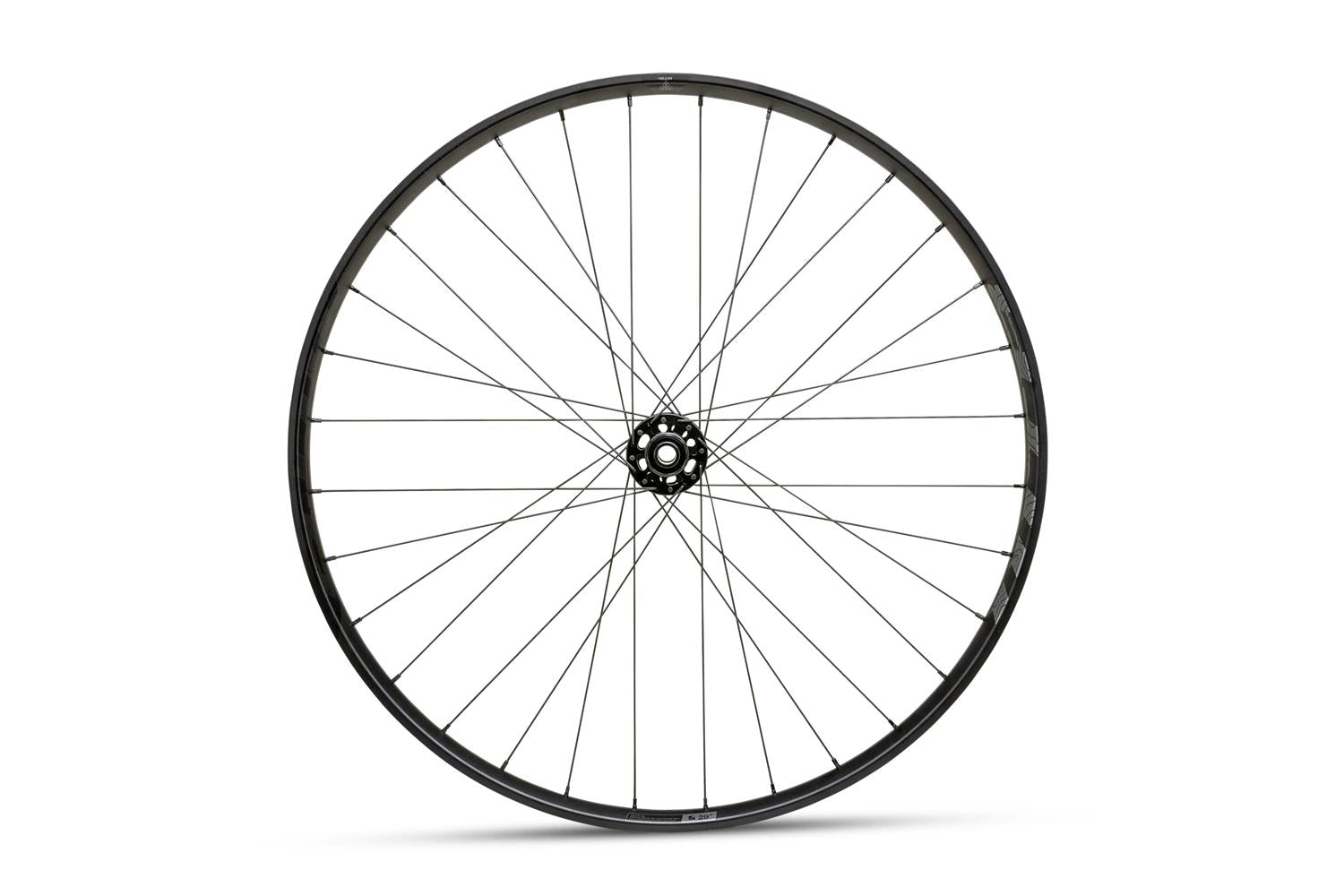

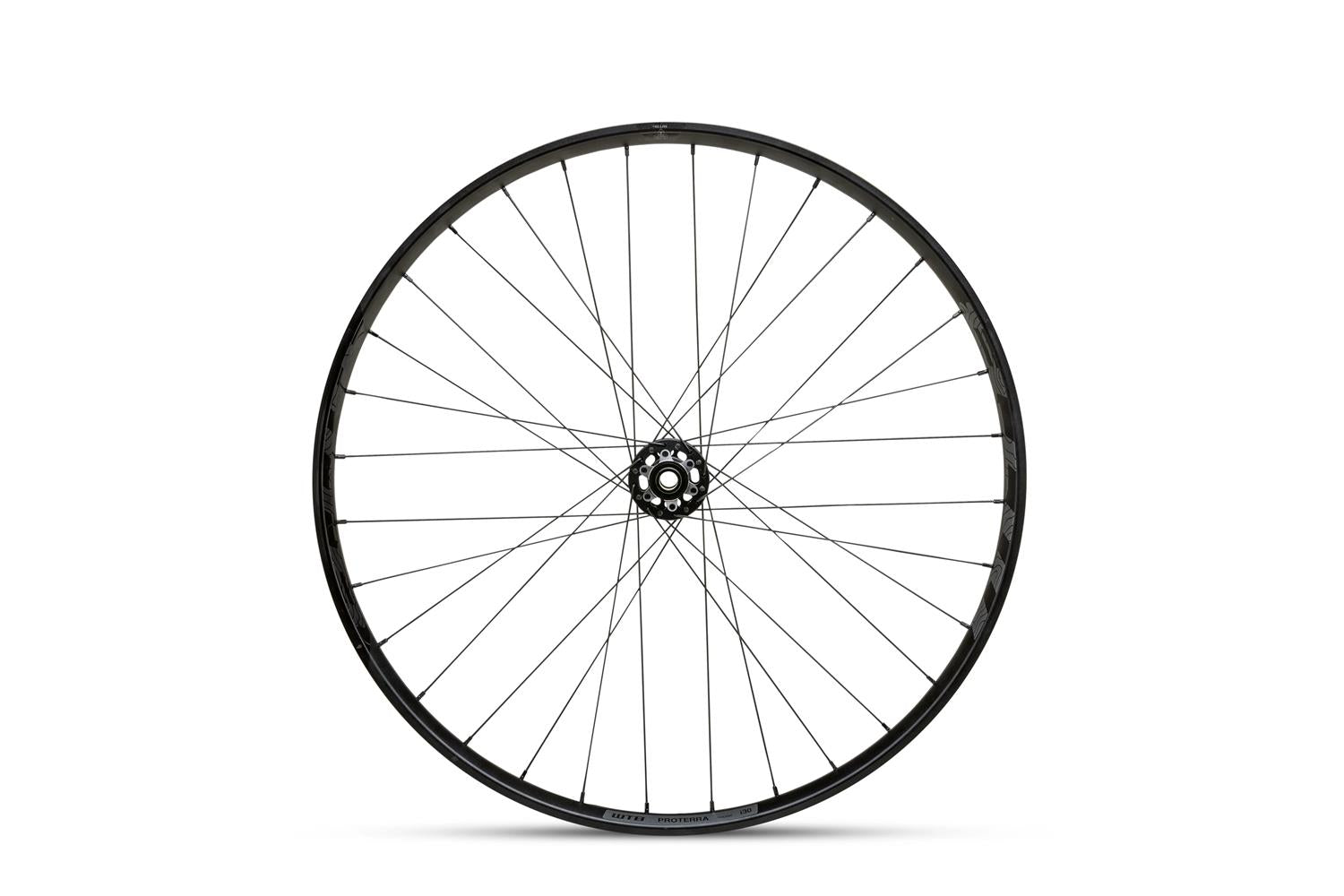

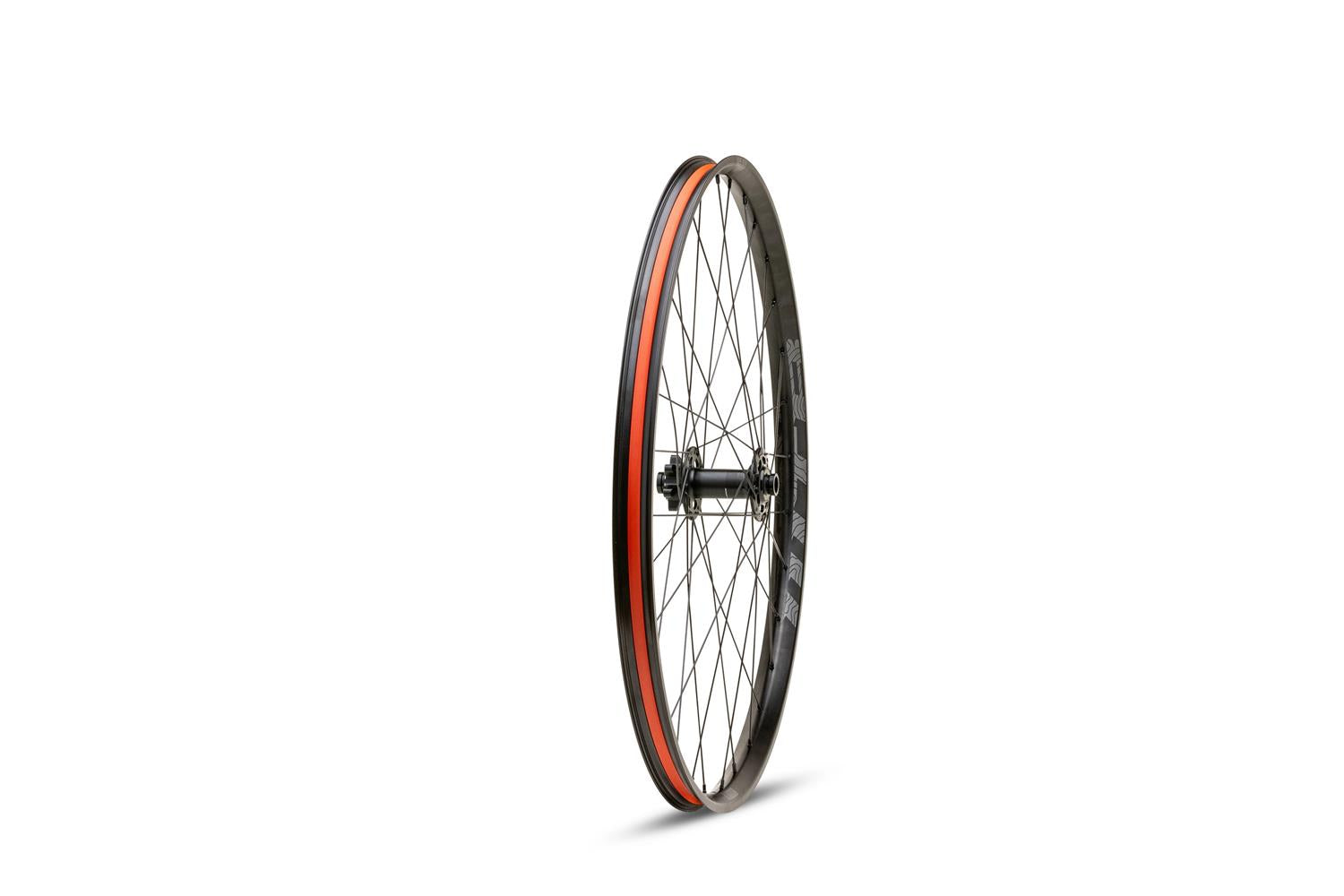

Proterra Tough i30 wheels keep the trail in check while everything else blurs by in the periphery. Reinforced by our proven Dual I-Beam support, Proterra Tough rims feature a 30mm internal width to provide higher tire volume while also increasing sidewall support at lower pressures.

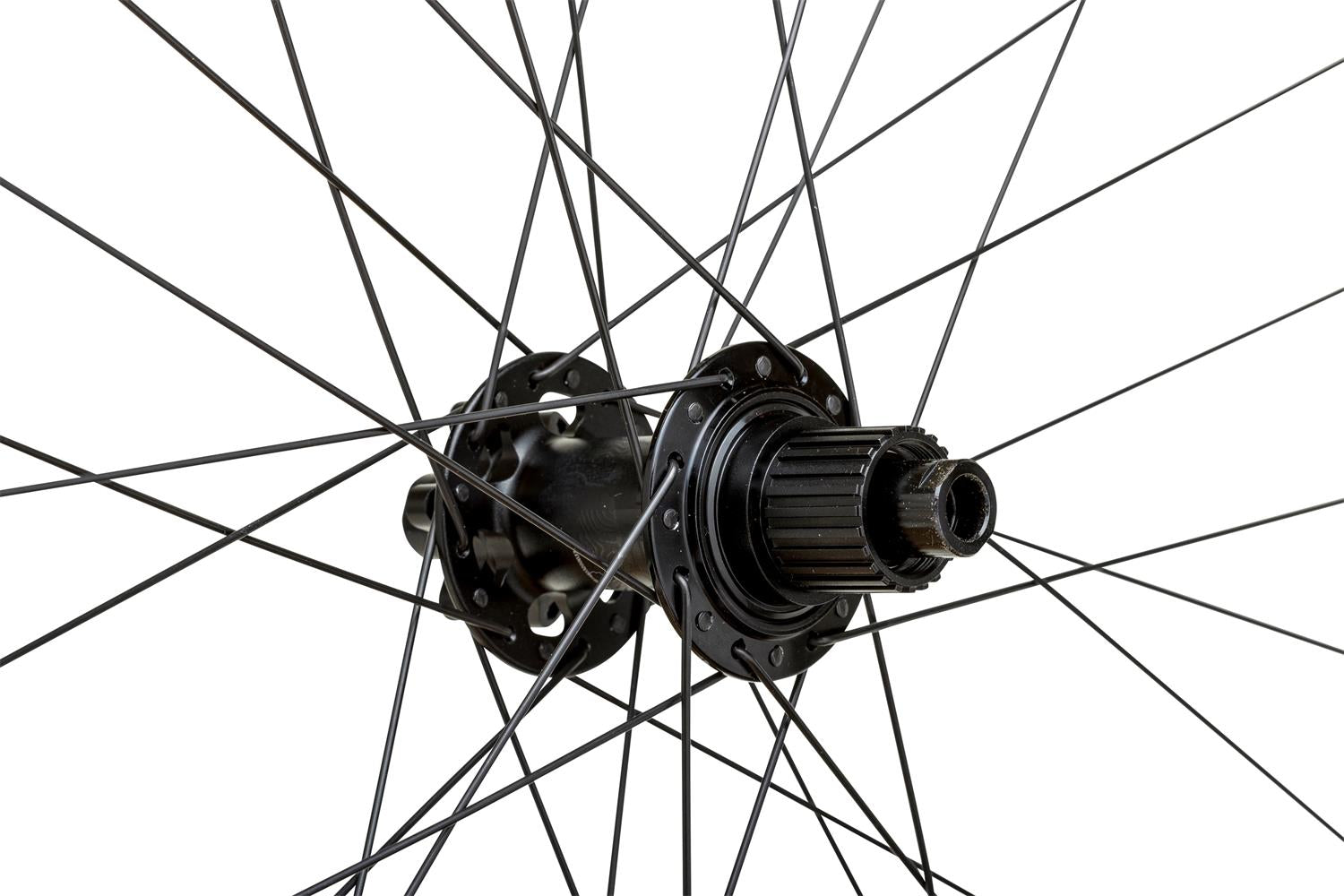

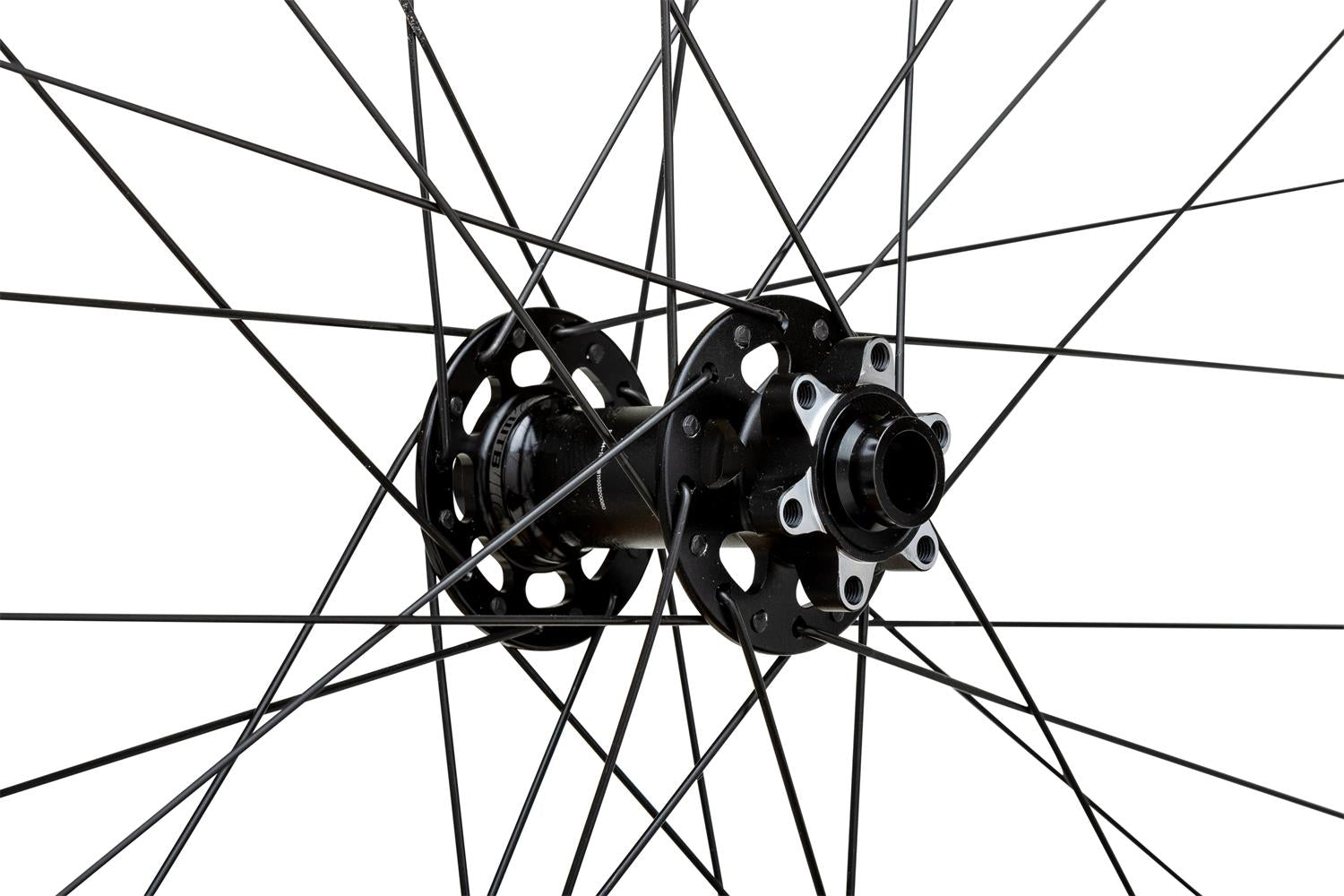

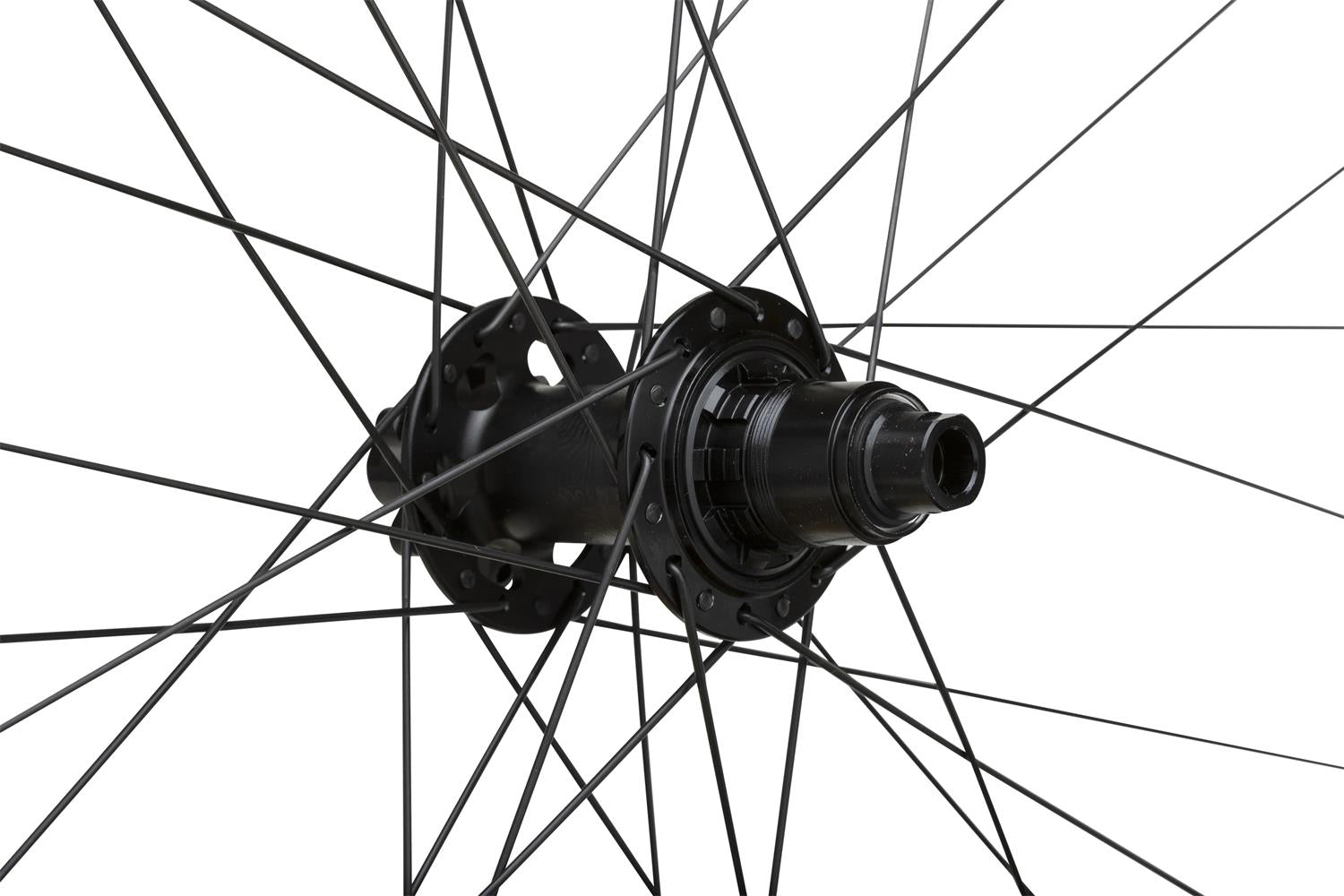

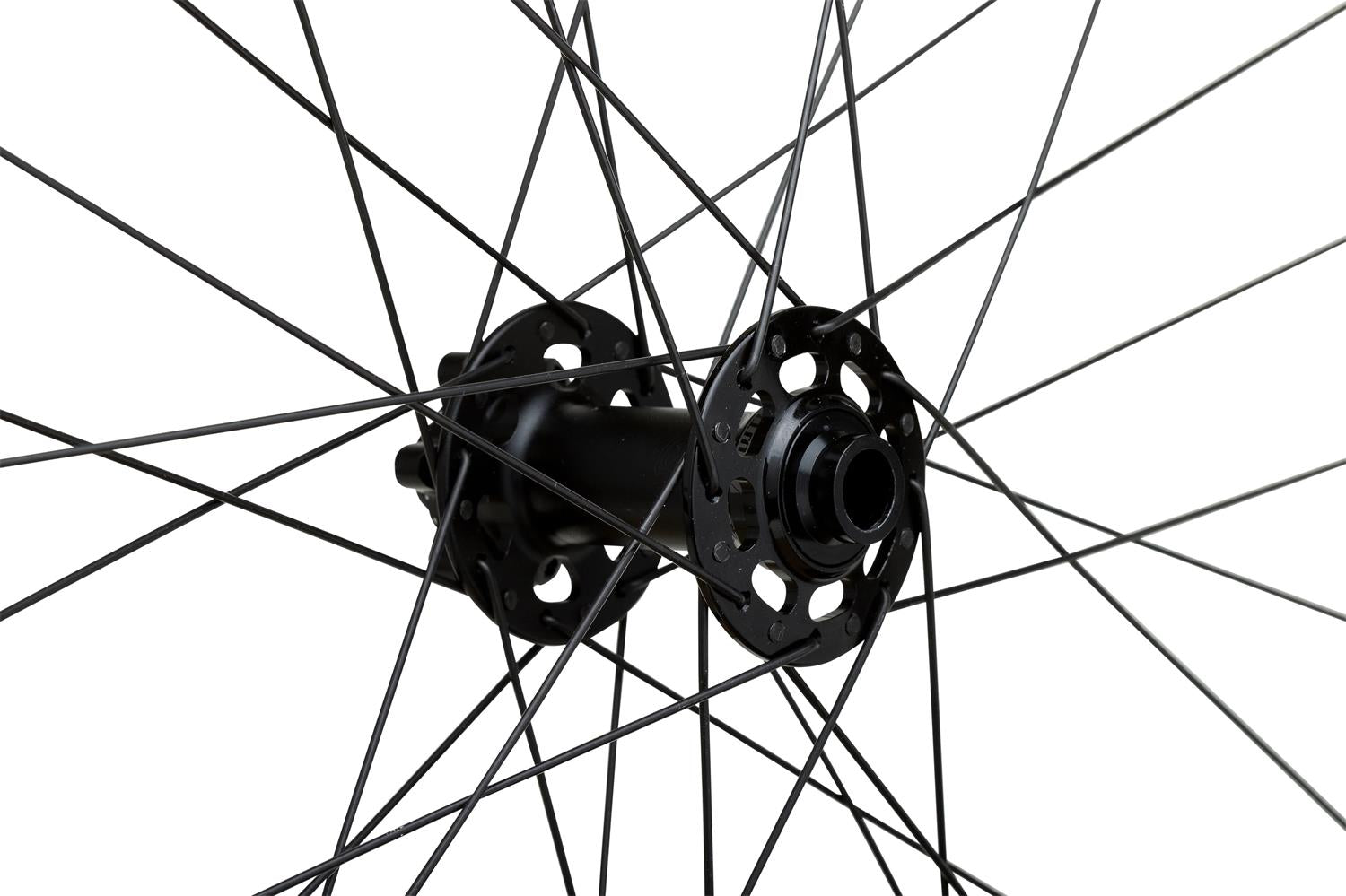

High-quality EZO sealed bearings are designed to endure through seasons of aggressive riding while a responsive 6-pawl freehub provides the snappy 5 degrees of engagement you demand when cranking out of corners. Choose Proterra Tough when you need a wheel that won’t let you down.

SPECIFICATIONS: (Max spoke tension range: 110-120KgF)

Product	Wheel Diameter	Position	Spacing	Spoke Holes	Driver Body	Rotor Mount	Inner Rim Width	Rim ERD*	Weight**	Max Rider Weight	Part Number
Proterra Tough i30 x 27.5 wheel, 110 x 15mm, 32h, 6-bolt, DB	27.5"	Front	15x110mm	32-hole	n/a	6-bolt	30mm	570	930g	290lbs	W045-0225
Proterra Tough i30 x 27.5 wheel, 148 x 12mm, 32h, 6-bolt, DB, SRAM XDR	27.5"	Rear	12x148mm	32-hole	SRAM XDR	6-bolt	30mm	570	1076g	290lbs	W045-0229
Proterra Tough i30 x 27.5 wheel, 148 x 12mm, 32h, 6-bolt, DB, Shimano MS	27.5"	Rear	12x148mm	32-hole	Shimano Microspline	6-bolt	30mm	570	1076g	290lbs	W045-0230

*Proterra hub dimensions can be found on our Resources and User Manuals page.

**Proterra wheel weights include the Solid Strip, tubeless tape and valve installed on each wheel.

WTB Proterra Tough i30 27.5" Wheels

$599.00

Tax included. Shipping calculated at checkout

SKU:
W045-0225
BRAND:
WTB
BARCODE:
FUTURE SHIPMENTS:

Select stock item

Product variants

Some dropdown options are for individual parts or specific sizes. Please select carefully.

FAST SHIPPING

14 DAY RETURNS

EXPERT SUPPORT

Note on Availability Items available on our website are not always available in-store, some are only held by our suppliers. In-store items usually arrive 2-3 business days after the order is dispatched (rural deliveries can take an extra 2 business days). Items only held with supplier might take up to 7 business days from when the order is dispatched, depending on the supplier. Please contact us if you have specific questions.

SHIPPING INFORMATION

At Chain Reaction, we aim to deliver your order as quickly as possible.

Free Shipping on Gear: Orders over $139 (excludes Bikes & Bulky items)
Delivery Times:
In-Store Items: Arrive in 2–3 business days (extra 2 days for rural).
Supplier-Only Items: May take up to 7 business days, depending on the supplier.
Selected Bikes:
Nationwide shipping for select bikes: $60 or free pick-up from our Christchurch store.
Shipped bikes require some assembly. Picked-up bikes are fully built and ready to ride.
Click & Collect: Available for most products. Collect at 4/218 Moorhouse Ave, Christchurch.
Dangerous Goods: Items like batteries and aerosols may incur additional fees due to safety regulations.
Returns: Changed your mind? Return unused items in original packaging within 14 days for a refund (shipping costs excluded).

For full details, visit our Shipping Page.

Description

SPECIFICATIONS: (Max spoke tension range: 110-120KgF)

Product	Wheel Diameter	Position	Spacing	Spoke Holes	Driver Body	Rotor Mount	Inner Rim Width	Rim ERD*	Weight**	Max Rider Weight	Part Number
Proterra Tough i30 x 27.5 wheel, 110 x 15mm, 32h, 6-bolt, DB	27.5"	Front	15x110mm	32-hole	n/a	6-bolt	30mm	570	930g	290lbs	W045-0225
Proterra Tough i30 x 27.5 wheel, 148 x 12mm, 32h, 6-bolt, DB, SRAM XDR	27.5"	Rear	12x148mm	32-hole	SRAM XDR	6-bolt	30mm	570	1076g	290lbs	W045-0229
Proterra Tough i30 x 27.5 wheel, 148 x 12mm, 32h, 6-bolt, DB, Shimano MS	27.5"	Rear	12x148mm	32-hole	Shimano Microspline	6-bolt	30mm	570	1076g	290lbs	W045-0230
