E-bike
Battery
840Wh battery

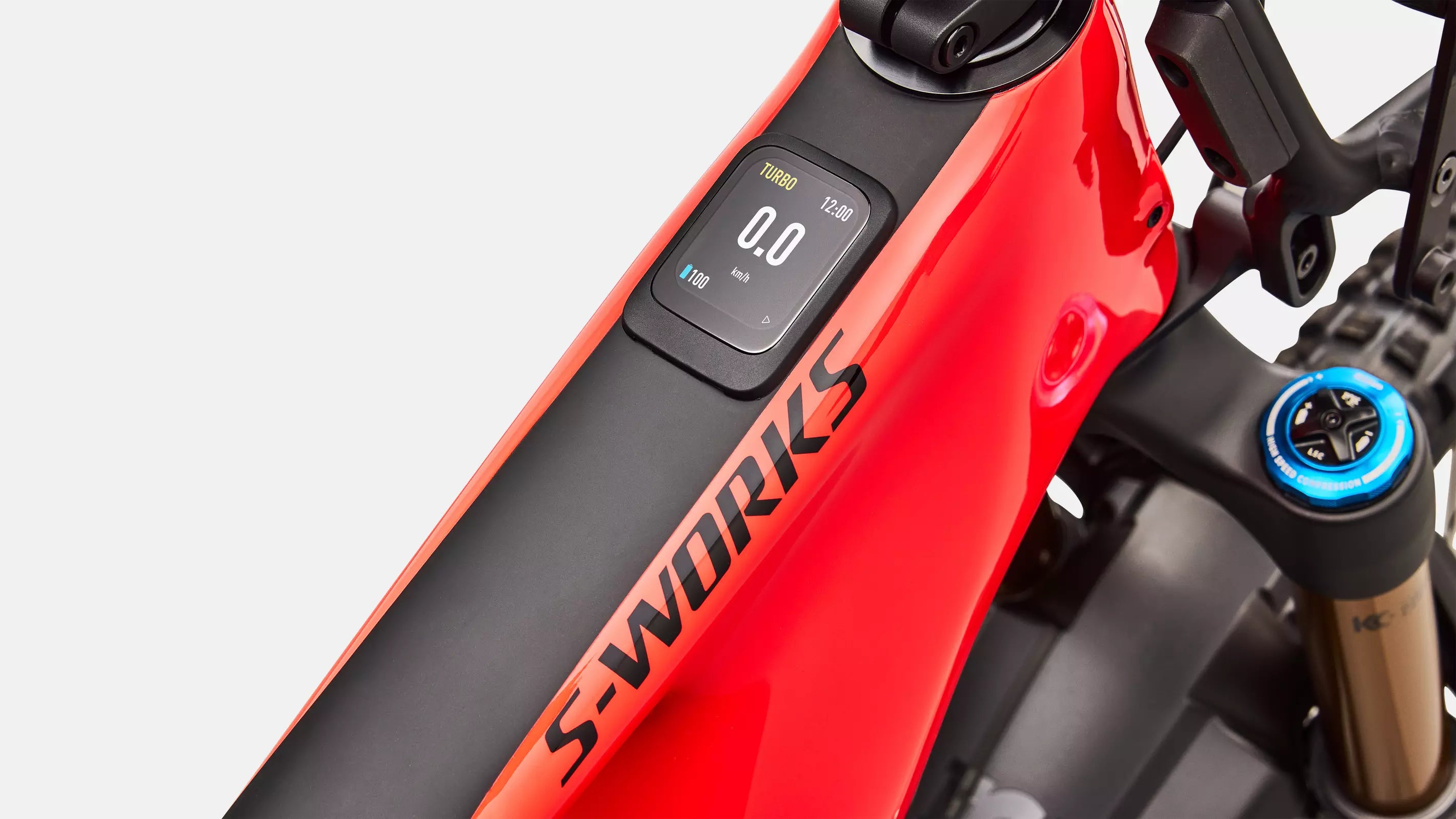

UI/Remote
Mastermind TCU, 2.2" high resolution screen, fully
customizeable with Specialized app, works with Apple Find My
Charger
Specialized 12amp smart charger, 4 different charge
functions including Standard, Fast, Eco, and charge to 80%

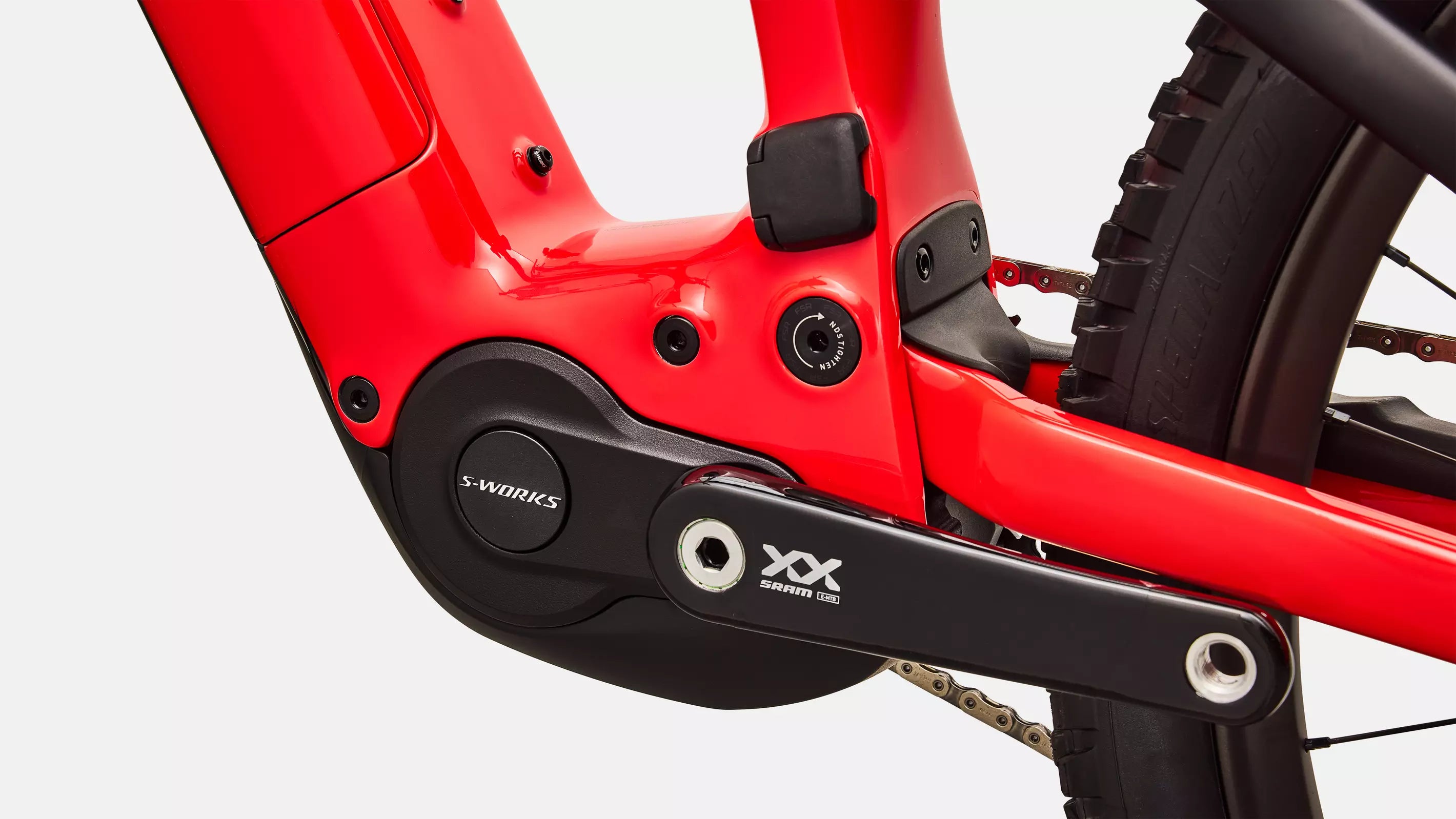

Motor
Specialized 3.1 S-Works motor, 111Nm power, 850W power
Frameset
Seat Binder
Alloy, 38.6mm
Frame
Levo 4 carbon frame, 150mm travel, w/SWAT storage, side
entry battery, fork travel up to 180mm, adjustable head angle, BB height,
chainstay length
Suspension
Fork
FOX Factory 38, GRIP X2 damper, high/low speed compression
adjust, high/low speed rebound adjust, 15x110mm axle, 44mm offset, 160mm travel

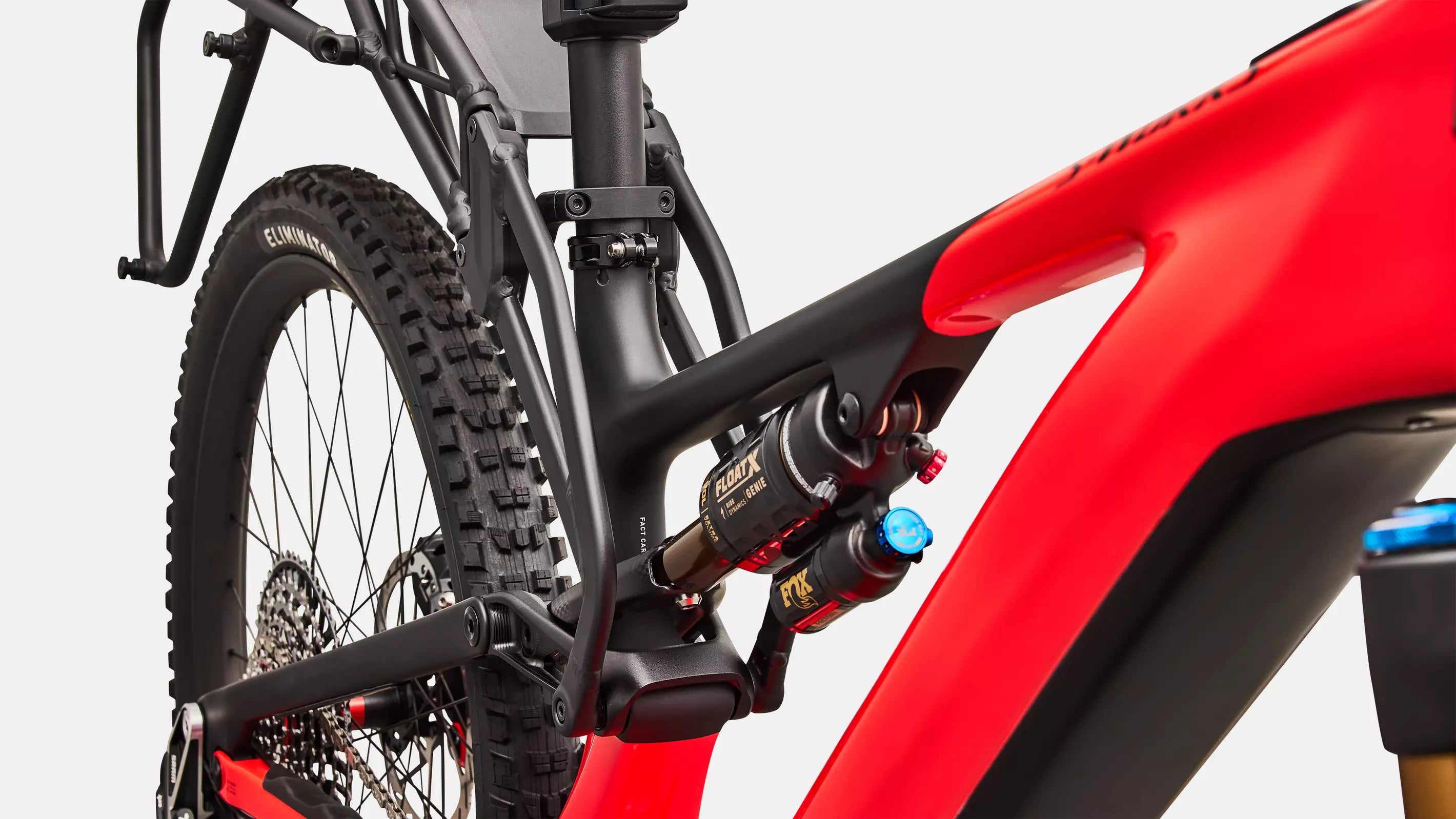

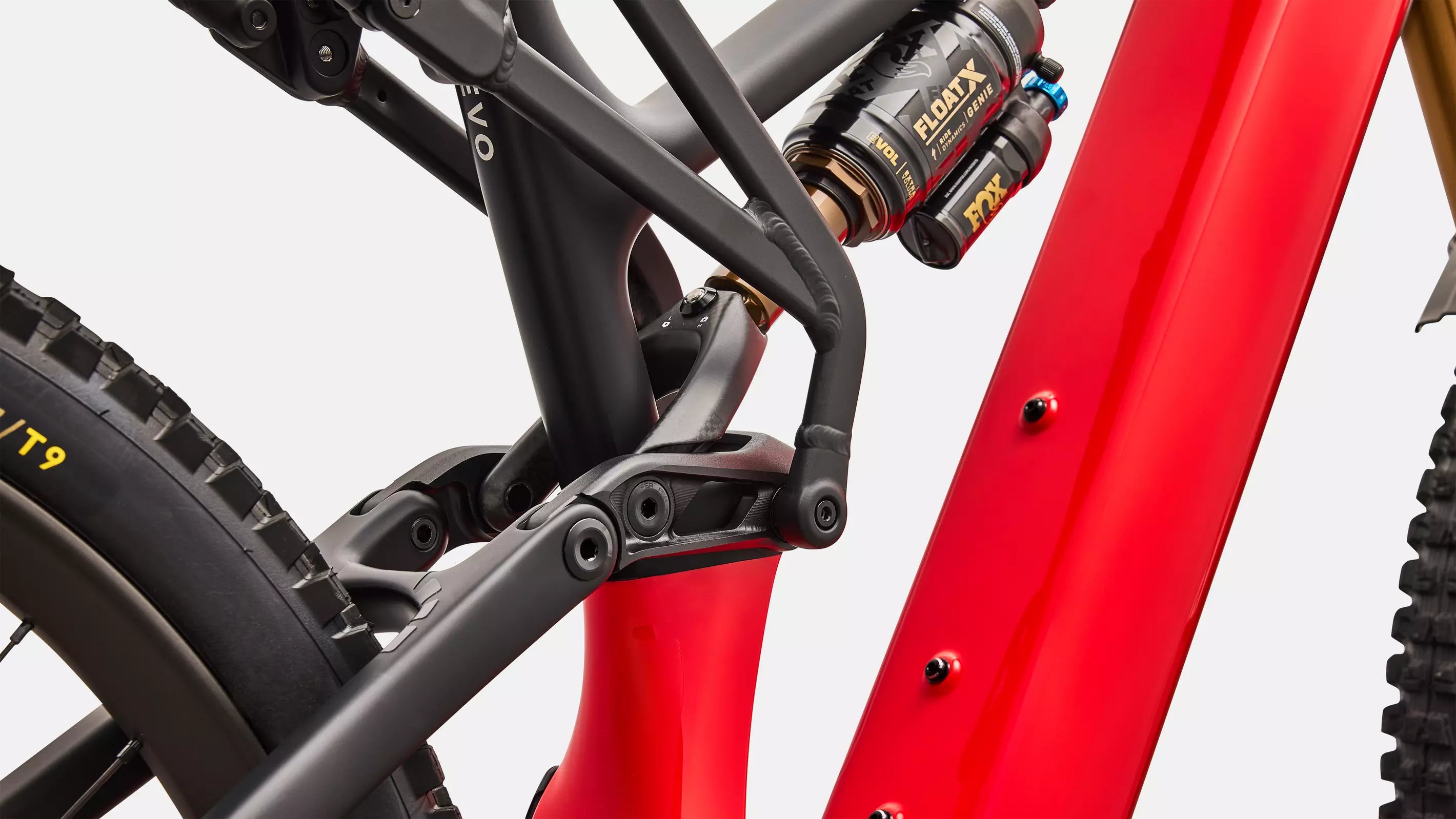

Rear Shock
Fox Float X Factory with Specialized GENIE Shock Tech, Ride
Dynamics Trail Tune, 2-position lever, LSR adjustment, 210x55mm
Brakes
Rear Brake
SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 200mm
HS2 Rotor
Front Brake
SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 220mm
HS2 Rotor
Drivetrain
Chainrings
SRAM 34t T-Type chainring, 104 BCD, steel
Shift Levers
SRAM AXS Pod Ultimate with Discrete Clamp
Crankset
SRAM XX Carbon crank, 160mm, ISIS interface
Rear Derailleur
SRAM XX Eagle Transmission Derailleur
Cassette
SRAM XX Transmission, XS 1297, 10-52t
Chain
SRAM XX, T-Type
Wheels & tires
Front Tire
Butcher, GRID Gravity, T9, TLR, 29x2.4"
Rear Tire
Eliminator, GRID Gravity casing, Gripton T7/T9 compound,
27.5X2.4
Rear Wheel
Roval Traverse HD 27.5", hookless carbon, 30mm inner
width, tubeless ready, DT Swiss 240 Hub, 12 x 148mm, 32h
Front Wheel
Roval Traverse HD 29", hookless carbon, 30mm inner
width, tubeless ready, DT Swiss 240 Hub, 15 x 110mm, 28h
Inner Tubes
Standard, Presta Valve
Cockpit
Grips
Deity Lockjaw, Lock On, 32mm OD, 133mm Length, Black
Stem
Industry 9 A35 Mountain stem, 35mm clamp, 40mm length

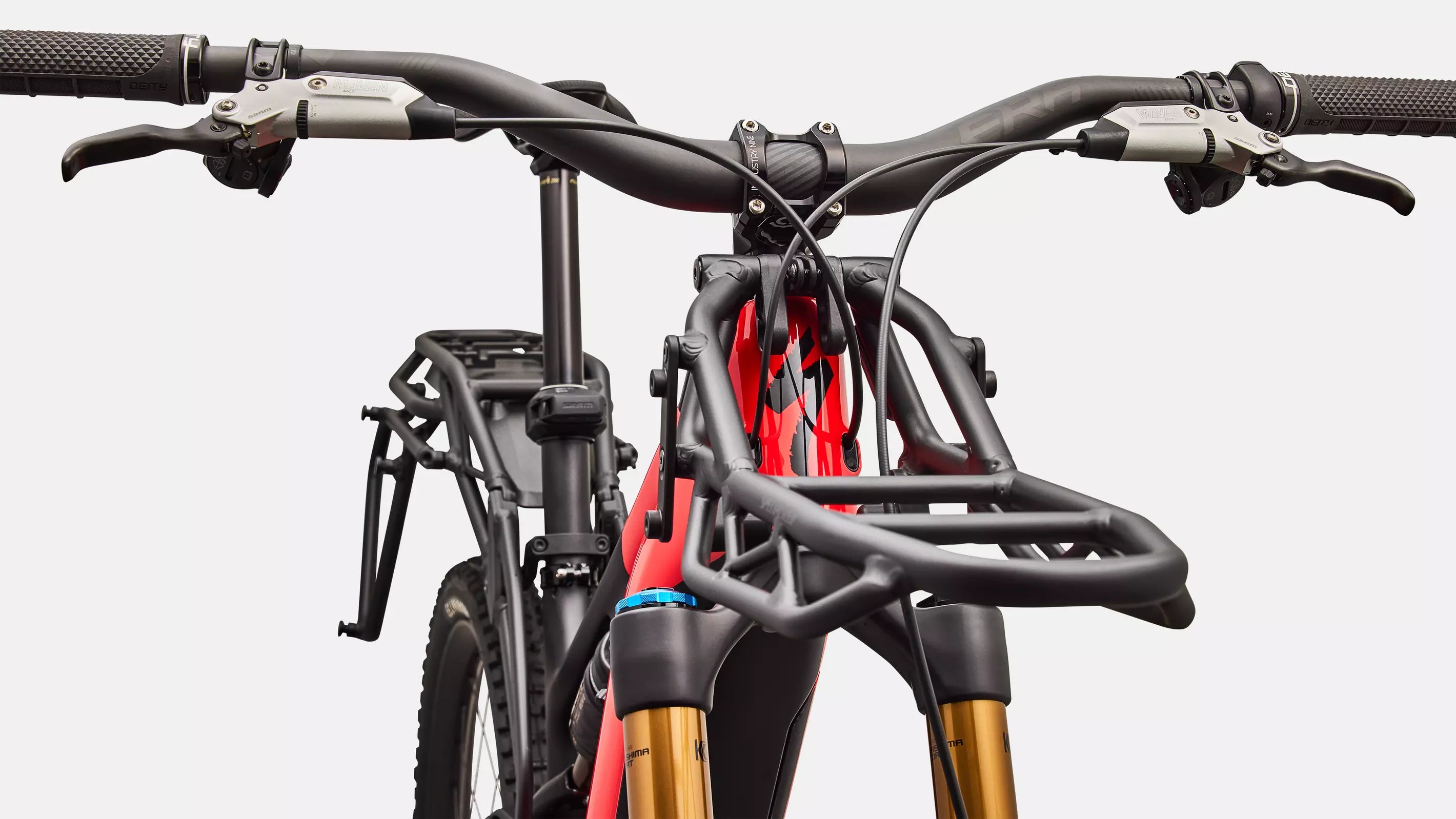

Handlebars
RaceFace Era Carbon Handlebars, 35mm clamp, back-sweep
8-degrees, up-sweep 5 degrees, 800mm width, S1/S2: 40mm rise, S3-S6: 55mm rise
SeatPost
RockShox Reverb AXS, 34.9mm, S2: 125mm, S3: 150mm, S4-6:
200mm
Saddle
Specialized S-Works Power Mirror, Ti Rails, 143mm/155mm
Accessories
SWAT
SWAT Internal downtube storage
Product details
Product ID
292994
Compliance Certification
As applicable, certified to UL 2849 (e-system) and/or UL
2271 (battery) by UL Solutions and/or SGS. <br>For information on
lithium-ion battery standards and regulations in New York City, visit:
[www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)
Weight
Weight
27.25 kg (60 lb, 1.2 oz)
Weight Size
S4
